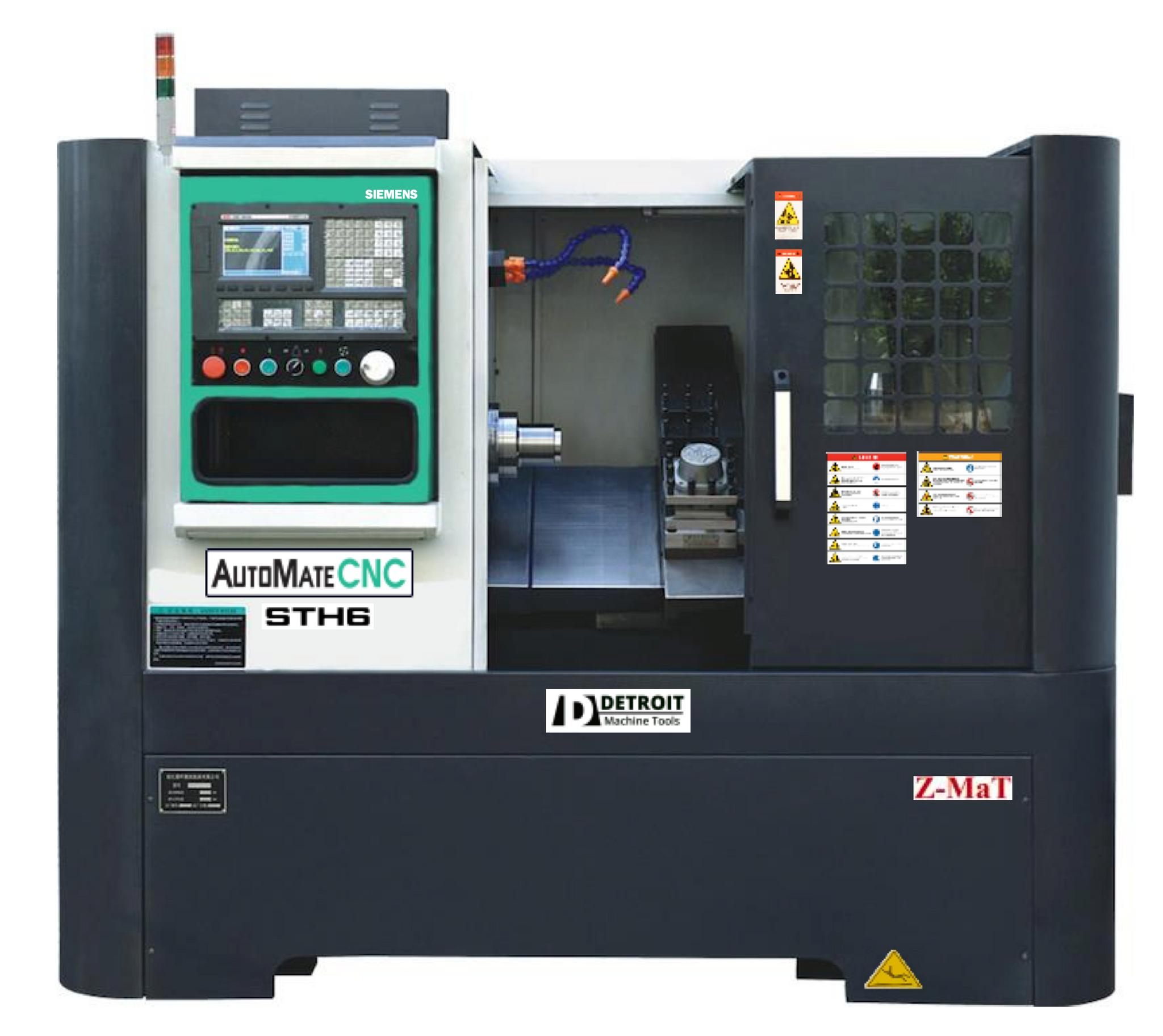

STH6 - SLANT BED CNC TOOLROOM LATHE -
PRODUCT INFO
5 HP Servo Spindle
6" Chuck, 4-Tool Turret/Gang Plate, Tailstock
This toolroom CNC lathe slant bed has all the capabilities of a standard, universal use toolroom CNC lathe with the added advantage of having a 35 degree slant bed.
The slant bed toolroom CNC lathe design provides good chip flow and easy operator access. The chuck, turret, and tailstock set-up on this toolroom CNC Lathe offers the widest range of machining options for different parts making applications. The STH6 slant bed CNC toolroom lathe is the most economical slant bed lathe with tailstock on the market.
Optional hydraulic 5C or 16C collet chuck systems available. Manual chuck can be upgraded to a hydraulic chuck.
Siemens 808D Siemens CNC Control offers industrial grade programming control with conversational programming helps and built-in programming guide. Current promotion from Siemens USA offers a FREE seat in their webinar training series - PLUS, a PC simulator for training and program writing assistance.
As with all Automate CNC machines, the STH6 has a closed loop system and servo motors and drives - allowing for rigid tapping and spindle positioning operations.
Quality components include Siemens servos and drives, Schneider electronics, PMI ball screws and Hiwin linear guides. Heavy duty turning center offers precision and quality performance for machine shop and production settings. Popular in small or home shops.
OVERVIEW
Slant Bed CNC Toolroom Lathe
6" Chuck, 4-Turret Toolpost w/ Gang, Tailstock
Combines traditional tool room features with industry leading original bed design. Quality components and rigid manufacturing quality requirements assures that the machine will stay on track for the long haul.
Slant bed provides good chip flow and operator access. Compact design limits space requirements. High speed with accurate results - combined with "operator ease" features make this economical slant bed a good choice for shops that are looking for a versatile CNC lathe.
We are confident this STH6 is the lowest priced "quality" slant bed lathe tail stock you will find.
Performance Details:
- Siemens 808D CNC Control
- Servo Motors & Drives on X/Z
- Closed Loop System
- Manual 6" 3-Jaw Chuck
- 4-Turret Tool Post, PLUS 2-Tool Gang
- Tail Stock w/12" Travel
- 1.89” Spindle Bore
- 50-3000 Spindle RPM
- 5 HP Spindle
- Travel: x = 12” / Y = 11”
- Feed Rate: 320 IPM X/480 IPM Z
- Efficient Ergonomic Design
Warranty Details:
- 18 months on the STH6 lathe
- 3 years total (2+1) on Siemens 808D Control
FEATURES
| Lathe Machine | |
| True Slant Bed - Heavy Cast Base | One piece cast iron foundation is a true 30 degree slant bed casting, providing large mass in a small footprint. More mass means higher rigidity and better heat dissipation. |
| Slant Bed Design | A slant bed lathe allows for better chip flow. A slant bed lathe can handle a large volume of chips, while protecting the ways from chips and debris. Also provides easier access to chuck and cross-slide - making set-ups easier and faster. |
| 1.89” Spindle Bore | Generous spindle bore allows for easy pass through of large diameter stock. Easy access for optional pneumatic or hydraulic chuck. |
| Solid Box Ways | Traditional way design has several advantages - including the ability to take heavy cuts and handling heavier work pieces. Induction hardened and ground for precision and long life. |
| Manual 6” Chuck | With American Standard A2-6 spindle nose chuck mount. Manual 6” scroll chuck is standard option - adaptable for pneumatic chuck or 5C collet holders. |
| 4-Turret Tool Post | Electric indexing tool post allows for convenient tooling changes, by using lower cost standard size tooling. Useful in small part run operations, machine shops and prototyping - situations where you are changing tooling more often. |
| Extra Tool Gang Plate | Located directly behind the turret tool post, this BONUS gang plate allows you to add additional tooling to your operation. Not limited to tooling you can fit in the 4-tool turret tool post. |
| Tool Box and Tools | A set of the basic tools required for maintenance are included with this lathe. Gives you what you need to get up and running and for routine maintenance. |
| Manual Tail Stock | With nearly 12” of travel on the tail stock and 4” of quill travel, this manual tail stock expands the capabilities of the STH6 to allow for turning extra-long stock or work pieces. |
| Foundation Pads | Heavy machined leveling pads that adjust the height to keep your machine aligned and balanced. Solid multi-point contact with shop floor reduces vibrations and increases accuracy. |
| Drive System | |
| 5 HP Servo Spindle Drive | Plenty of power to match the machine’s capacity. Provides higher torque - PLUS, rigid tapping and spindle positioning capabilities. |
| 50-3000 Spindle Speed Range | Servo driven spindle provides rapid speed changes, from 50 to 3000 RPMs in a single speed range. No need for changing gears or belts. Constant torque rise, even at low RPM are assured with the servo drive. |
| Feed Rates: 320 IPM on X / 480 IPM on Y | Faster speeds equals higher production rates. The Siemens industrial control, and axis servo drive system provide the power and control that allows for higher speeds - many times faster than competitive systems. |
| PMI Ball Screws | World-class standard ball screws that efficiently transmit rotary motion to linear motion. This allows for high-speed, highly accurate axis movements. Accurate ball circle diameters along full length of ball screw assures consistent drag torque and low noise. |
| Safety/Operation | |
| Ergonomic Control Panel and Operator Interface | Machine control panel adjusts and rotates up to 90 degrees. High tactile buttons, manual pulse generator, and convenient cycle start buttons improve operator convenience, efficiency, and safety. |
| Auxiliary Cycle Start | Easy access buttons allow the operator to operate pneumatic or hydraulic chuck with the push of a button. Having a second E-Stop within easy reach also adds to the safety features of this lathe. |
| Manual Pulse Generator | Handheld pendant that allows the operator to be independent from the main control panel. The rotating knob generates pulses that are sent to the machine control, allowing the operator to move the lathe in a pre-determined distance with each click of the knob detent. |
| Automatic Lubrication System | Lubricates all wear points during machine operation at continuous time intervals. Benefits include: reduced labor, material costs and significant extension of bearing life. |
| Programmable Coolant System | Control coolant flow at the control panel using standard M-Codes. Cycle times can be significantly reduced, while feeding and cutting speeds can be significantly increased. Proper cooling extends life of cutting tools. |
| Work Light | Focused lighting elements increase operator efficiency and reduce fatigue. This light is flicker resistant, waterproof, and resistant to both cooling and lubricants. It is also resitant to impacts and vibrations. |
| Tri-Color Alarm Light | Green light turns red when control alarm recognizes a machining error or machine malfunction. An operator standing away from the machine is visually alerted by the activated alarm light when machining cycle is finished or machine errors out. |
| Siemens 808D CNC Control | |
| Closed Loop System | System directly monitors motor position and velocity in real time. The system then automatically makes corrections to assure correct tool positioning. High accuracy and maximum parts quality ensure a minimal rejection rate. Also assures smoother surface finishes. |
| Siemens Servos and Drives | Achieves rapid acceleration and higher speeds - maintains high torque throughout speed range. Motor is highly efficient - and it stays cool. Quiet at high speeds while having a vibration free operation. |
| Ideal for CNC Beginners | Ideal for entry level CNC users, the innovative, integrative start-GUIDE from Siemens provides an on-line digital help function on every screen. Helpful instructions are available anytime - at a push of a button. |
| Simple & Intuitive Interface | Well designed conversational programming functions and Wizards from Siemens, that help streamline programming at the control panel. All Siemens 808D controls come standard with this SINUMERIK Operate BASIC functionality. |
| Compact and Robust | Industrial panel design with hardened features is ideal for harsh environments. Small compact design matches smaller machines tools like the AutoMate CNC line. |
| USB Connector - Easily Handles Large Files | This unique Siemens function allows for the streaming of large program files direct from a USB. Large files are no longer a concern - other CNC systems lack this robust level of functionality. |
| Built-In Helps | Several Siemens provided “assists” help streamline programming functions. One example would be Hot Keys. With the Hot Key function, machine operators can easily access commonly used screens using operator defined hot keys. |
SPECIFICATIONS
| GENERAL SPECIFICATIONS - AUTOMATE CNC TOOLROOM LATHES | |||||
| Photo |
 |
 |
|||
| Model Name | STH6 Slant Bed Toolroom Lathe | FTL400 Flat Bed Toolroom Lathe | |||
| Price | $22,899 | $26,899 | |||
| TURNING CAPACITIES | |||||
| Max Swing Over Bed | 15” | 20” | |||
| Max Swing Over Carriage | 5.25” | 6.5" over gang plate, 9” with gang plate removed | |||
| Max Length of Workpiece | 22” | 33” center to center | |||
| Machine Repeatability | .0002” | .0002” | |||
| TRAVELS & FEED RATES | |||||
| X Axis | 12” | 11” | |||
| Z Axis | 16” | 28” | |||
| X-Axis Rapids | 320 IPM | 750 IPM | |||
| Z-Axis Rapids | 480 IPM | 750 IPM | |||
| Max Cutting Speed | 100 IPM | 315 IPM | |||
| SPINDLE | |||||
| Spindle Power | 5 HP | 7.5 HP | |||
| RPM Range | 50-3000 | 50-2000 | |||
| Spindle Bore | 1.89” | 2.44” | |||
| Spindle Nose Taper | A2-5 | A2-6 | |||
| Chuck Type | 5” Manual 3-Jaw Chuck | 8” Manual 3-Jaw Chuck | |||
| TAILSTOCK (STANDARD) | |||||
| Type | Manual | Manual | |||
| Quill Travel | 4” | 4” | |||
| Quill Taper | MT3 | MT4 | |||
| WEIGHT/DIMENSIONS/CAPACITIES | |||||
| Machine Weight | 4300 Lbs | 5500 Lbs | |||
| Machine Dimensions | 77” x 60” x 75” | 105” x 63” x 70" | |||
| Shipping Weight | 4630 Lbs | 5850 Lbs | |||
| Coolant Capacity | 10.6 Gal | 17.2 Gal | |||
| Hydraulic Capacity | 13.2 Gal | 13.2 Gal | |||
| Power (Standard) | 220V 3 Phase Power | 220V 3 Phase Power | |||
| Amperage Requirements | 21 Amp | 31.5 Amp | |||
