MI-329M Bench Milling Machine
GUARANTEED SAFE CHECKOUT
Bench Milling Machine - Small Shop
MI-329M Bench Milling Machine, 1.5 HP (110/220 Volt)
Precision milling for every shop: Built-in accuracy - ready to cut through projects with precision and power. Solid function and features give you the best operation and ease of use for the price. Great value - combined with optimal milling capacity makes this the best small bench-top milling machine.

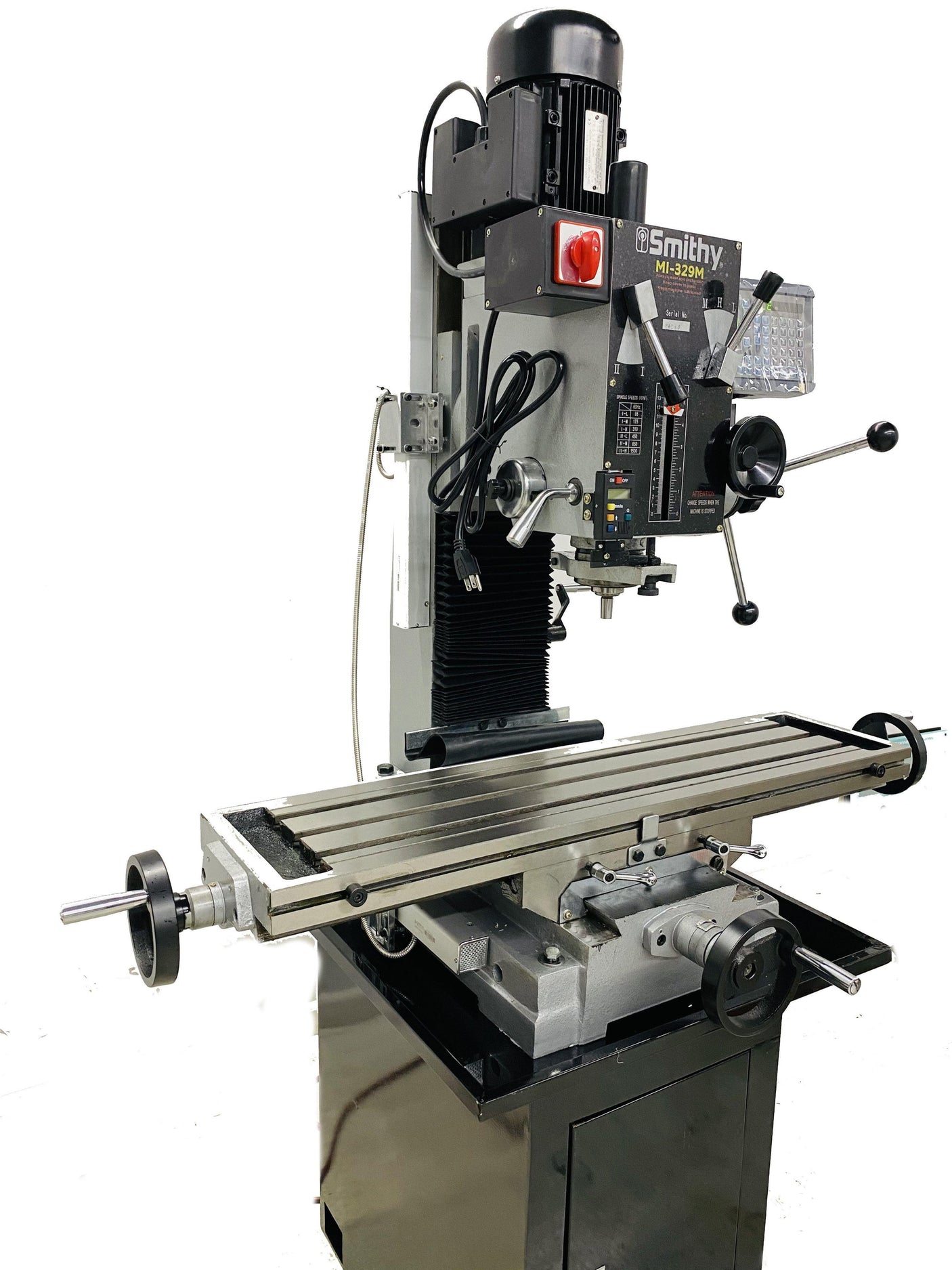

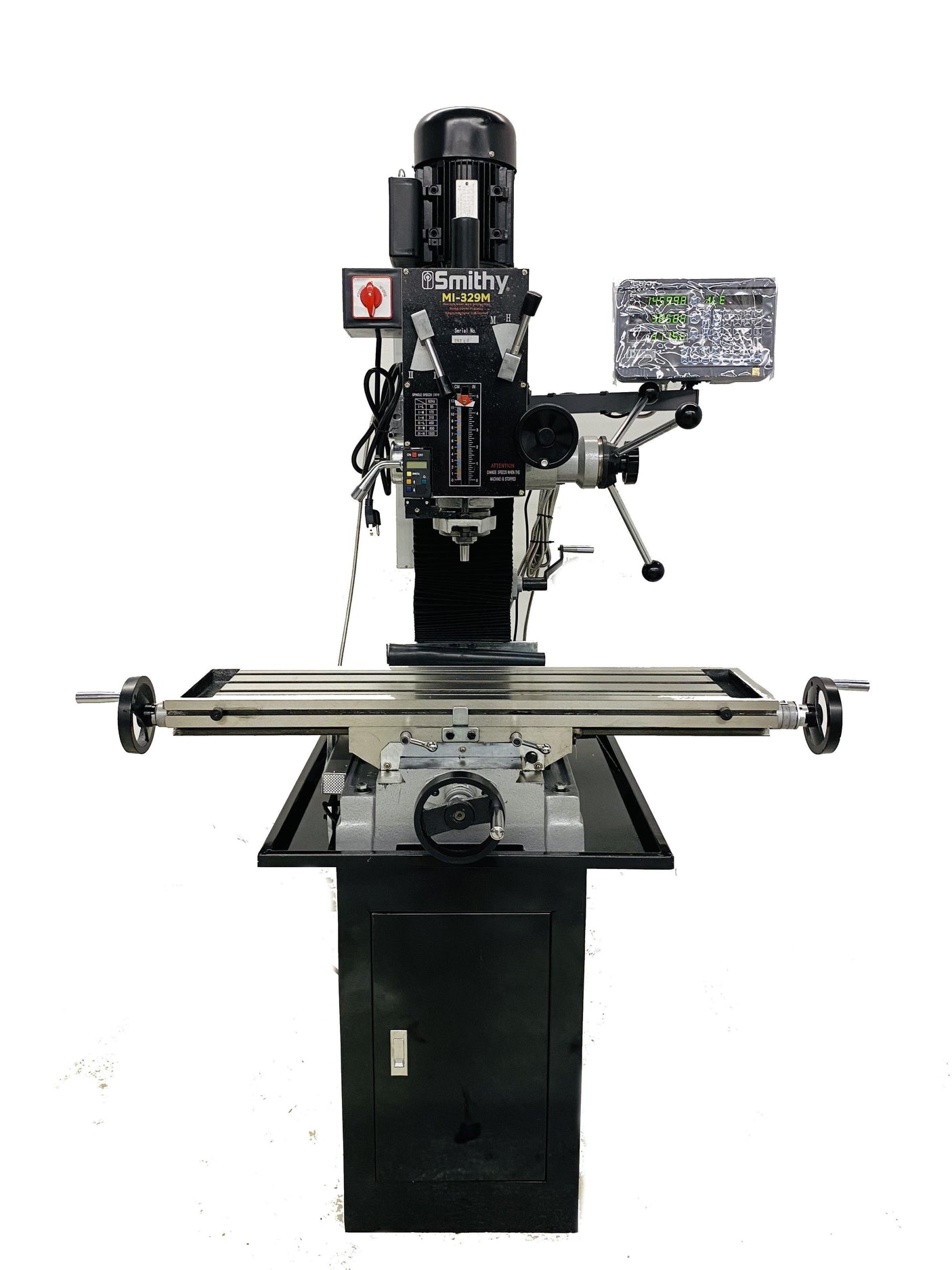

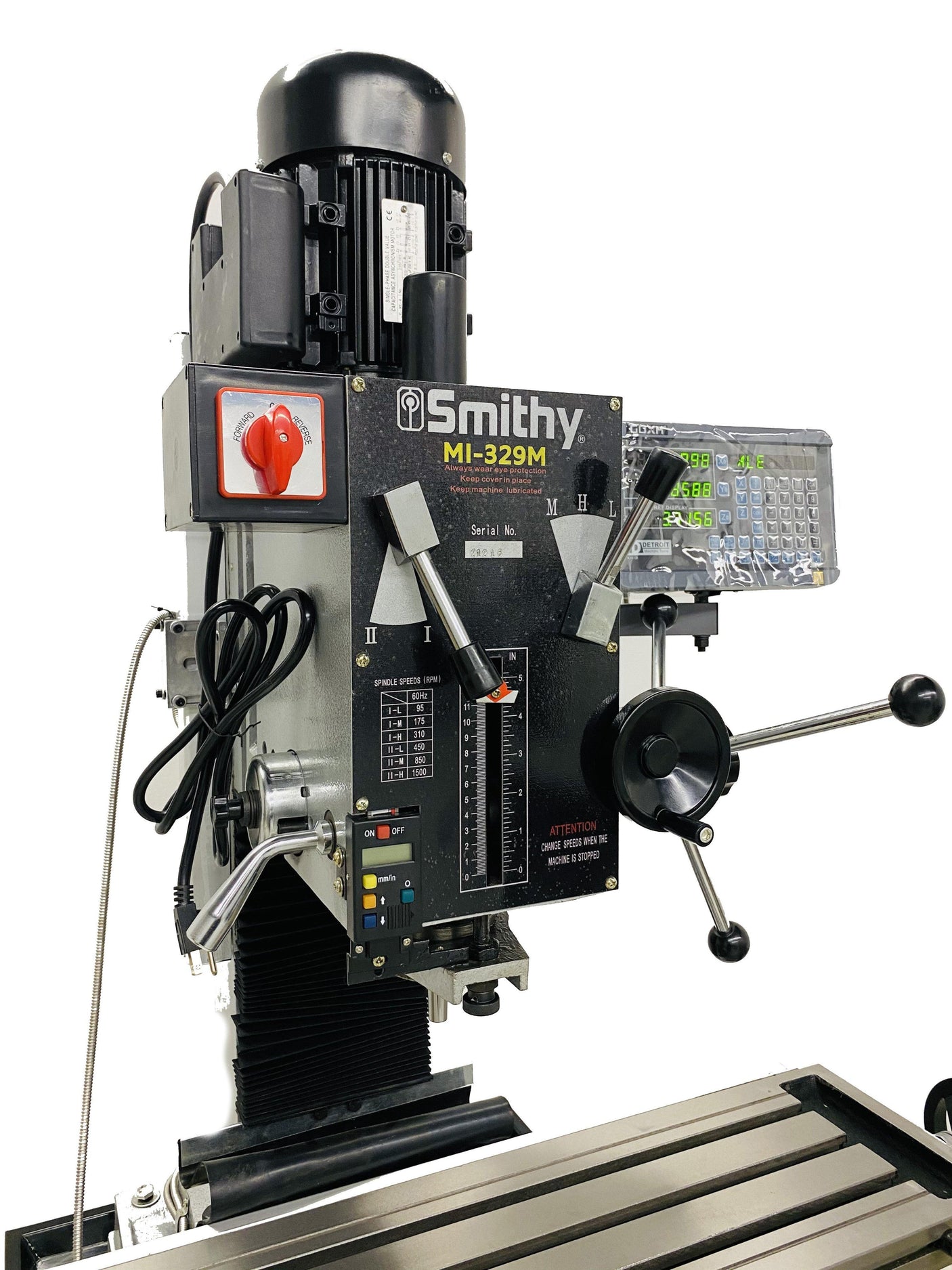

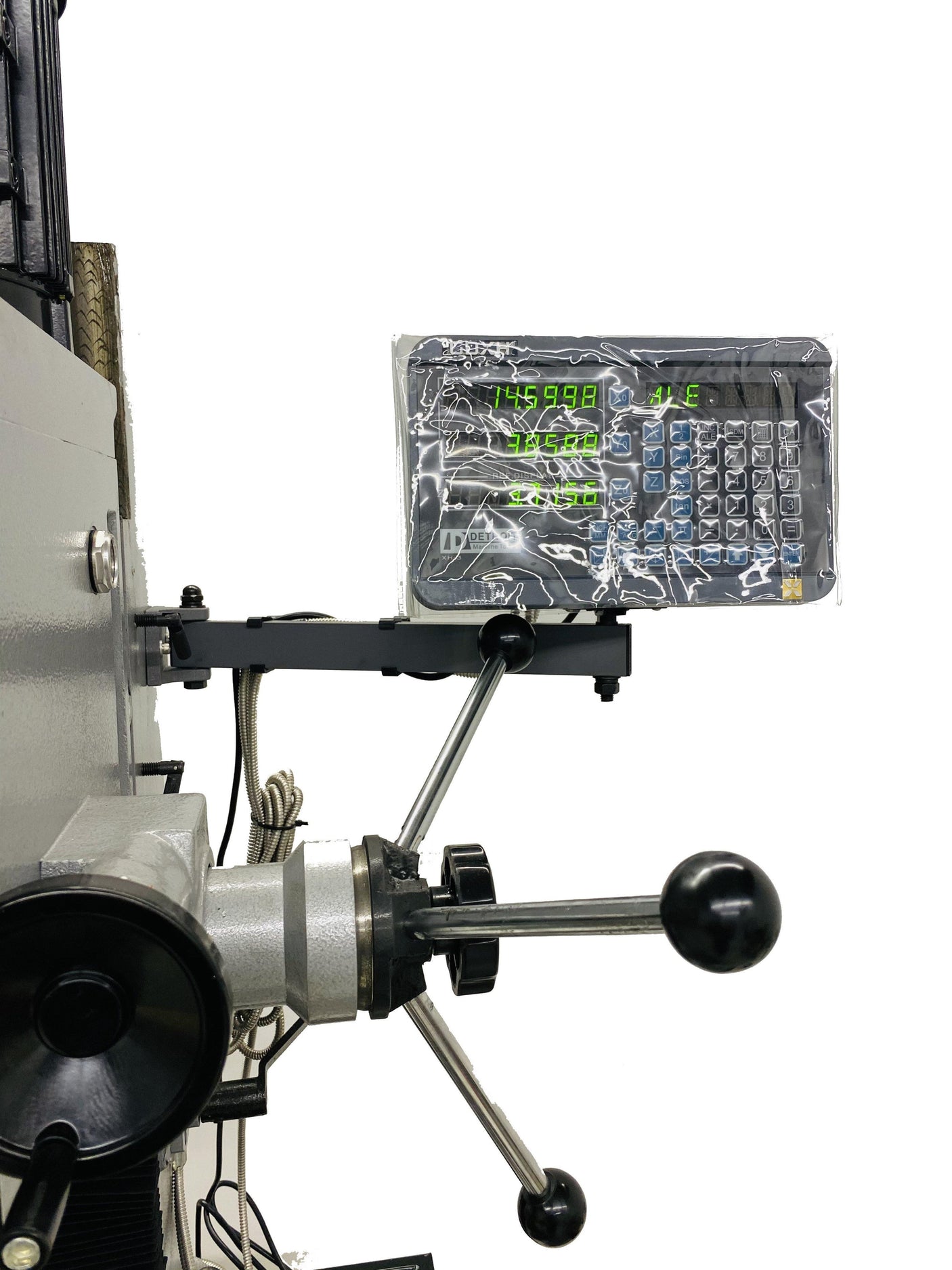

**PICTURED MACHINE IS SHOWN WITH OPTIONAL DRO**
OVERVIEW
SMITHY MI-329M MILL
Medium Duty 9” x 32” Gear Drive Mill
Accuracy adding features like square column, hand-scraped, flat dove-tail ways and adjustable gibs improve precision and assure consistent, positive results. Z axis DRO assures accurate depth of cut for precision milling operations. Rotating head, 5” cutting depth and Bridgeport standard cutting and clamping tools add versatility. Smithy’s 2 year warranty and hands on service also adds to the value.
Product Summary:
- 1.5 HP - 110/220 Volt
- Heavy - 762 lbs.
- R-8 Tooling - Industry Standard
- Z Axis Digital Readout
- Accurate - Gib Adjustments
- Gear Driven Spindle
- Square Column/Flat Dove Tail Ways
- Accurate Floating Dials

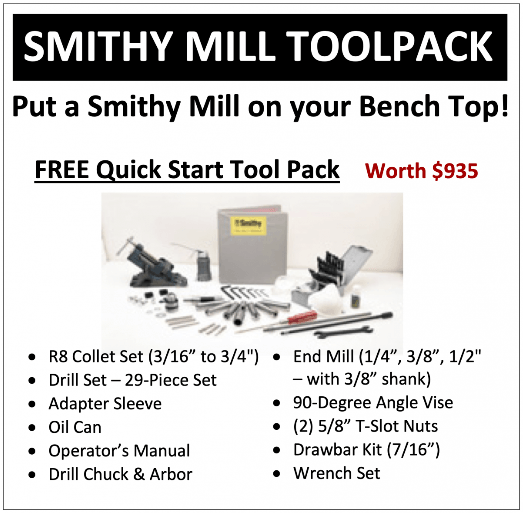

- Excellent FREE Tool Pack
- See Features and Specs Tabs for More Product Detail
Warranty Coverage:
- 2 Years Parts Warranty
______________________________________________________
Smithy MIDAS means:
- Rugged Design
- Quality Built In
- Inspected Twice
- Best Service Support
The best bench top mill value - for over 25 years!
Bench milling machine for small shop features include:
- Gear-drive Spindle - for Power and Torque
- Built-In Z Axis Digital Read Out - Optimum accuracy
- Electric Powerfeed on X axis (Optional)
- 110/220V - You choose voltage for your shop
- Simple operations
- Accurate - Superior Gib Design
- Rigid dovetail ways provide stability and increased accuracy
Smithy Quality is Tops: Smithy designs and builds some of the best machines. We pay attention to details, all through the process. Smithy is well-known for it's after sales service and two year warranty. Each machine is inspected twice - before it leaves the factory and before it leaves our warehouse in Ann Arbor, MI to head your way.
Heavy Duty Cast Base and Column | Over 700 lbs. of cast iron provides positive damping effect - offers greater accuracy. |
Flat Dove Tail Ways | Supports more weight with better weight distribution. |
Hand Scraped Ways | Another plus for greater accuracy. |
Adjustable Gibs | Allows for adjustment to assure maximum accuracy. |
Square Column | Keeps hill head properly indexed to the table, assuring accuracy. |
Gear Driven Spindle | No belts to change. More consistent power conversion and torque. |
Easy Dual Lever Speed Adjustment | Easy to select appropriate speeds. Always works at the correct speed. |
90 Degree Rotating Head | Set and indicate mill head to accurately mill at angles between 0-90 degrees. |
Head Height Adjustment | Simple to move head up and down for faster machine set-up and operations. |
1.5 HP 110/220V Spindle Motor | Big power and torque. Cool running 110 volt power assures longer motor life. |
5” Cutting Depth on Mill Head | Good runout from min to max depth. |
Bridgeport Standard R8 Collet | Industry standard cutting tools and holders are low cost and easy to use. |
DRO on Z Axis | Assures accurate milling depth of cut. |
Accurate Floating Dials | Calibrated in thousands. Screw pitch = 10 threads per inch. |
Long Bed and Work Table | 9” x 32” work table offers lots of room for complex or multiple set-ups. Three T-slots for easy fixture set-up. |
Bridgeport Standard 5/8” T-Slot | Industry standard clamping/holding accessories are low cost and easy to use. |
Model | MI-329M | MI-409MZ |
Motor Size | 1.5 HP | 2 HP |
Electrical Requirements | 110 VAC or 220 VAC (Convertible) | 110 VAC or 220 VAC (Convertible) |
Amperage | 9 Amps @ 220 Volt / 18 Amps @ 110 Volts | 9 Amps @ 220 Volt / 18 Amps @ 110 Volts |
Table Size | 31.5" x 9-3" | 40" x 9-3" |
X-Axis Travel | 22" | 25" |
Y-Axis Travel | 7.25" | 7.25" |
Quill Travel | 5" | 5" |
Head Travel | 15" | 15" |
Mill Column Construction | Square with Adjustable Dovetail Ways | Square with Adjustable Dovetail Ways |
X & Y Axis Construction | Adjustable Dovetail Ways | Adjustable Dovetail Ways |
Headstock Lubrication | Oil Bath Reservoir & Site Gauge | Oil Bath Reservoir & Site Gauge |
Spindle Speeds | 95, 175, 310, 450, 850, 1500 | 95, 175, 310, 450, 850, 1500 |
Spindle Taper | R8 | R8 |
Spindle Center To Column | 9.5" | 10" |
Spindle Nose To Table Distance | 2.5" to 18.25" | 2.5" to 16.5" |
Digital Position Readout On Quill | Standard | Standard |
Powerfeed (X-Axis) | Optional | Standard |
Powerfeed Z-Axis (Spindle) | N/A | Standard |
Automatic Tapping Cycle | N/A | Standard |
ELECTRICAL SPECIFICATIONS
Model | MI-329M | MI-409MZ |
Power Requirements | 110V/220VAC, Single Phase (Convertible) | 110V/220VAC, Single Phase (Convertible) |
Plug | 6-15P 220 Volt (supplied), 5-15P 110 Volt (not supplied) | 6-15P 220 Volt (supplied), 5-15P 110 Volt (not supplied) |
Outlet (Not Included) |
5-15R for 110 VAC, 6-15R for 220 VAC | 5-15R for 110 VAC, 6-15R for 220 VAC |
Motor Type |
Induction Type A/C | Induction Type A/C |
Motor Power | 1.5 HP | 2 HP |
Motor Amp Draw | 18 Amps @ 110 VAC / 9 Amps @ 220 VAC | 18 Amps @ 110 VAC / 9 Amps @ 220 VAC |
MECHANICAL SPECIFICATIONS
Model | MI-329M | MI-409MZ |
Spindle Speed Control | Mechanical | Mechanical |
Number Of Speeds | 6 | 6 |
Available Speed | 95, 175, 310, 450, 850, 1500 | 95, 175, 310, 450, 850, 1500 |
Longitudinal Travel | 22" | 30" |
Cross Travel | 7.25" | 7.25" |
Quill Travel | 5" | 5" |
Spindle Taper | R8 | R8 |
T-Slot Size | 5/8" | 5/8" |
Draw Rod Size | 7/16" x 20 | 7/16" x 20 |
Drill Chuck / Arbor | Included 1/2" Drill Chuck on an R8 Arbor | Included 5/8" Drill Chuck on an R8 Arbor |
Mill Head Rotation | 90 Degrees Left of Right | 45 Degrees Left of Right |
Mill Head Lubrication | Oil Bath with Reservoir and Site Gauge | Oil Bath with Reservoir and Site Gauge |
Dial Calibrations | .001" | .001" |
Mill Feed | Both Coarse and Fine Feed | Both Coarse and Fine Feed |
Powerfeed X-Axis | Optional | Standard |
Powerfeed Z-Axis (Spindle) | N/A | Standard |
Max Drill Size | 1" | 1" |
Max Face Mill | 3" | 3" |
Max End Mill | 1" | 1" |
Max Tapping | 1/2" | 1/2" |
PHYSICAL DIMENSIONS
Model | MI-329M | MI-409MZ |
Machine Weight | 716 lbs | 786 lbs |
Machine Size |
|
|
Footprint | 25" x 16" | 25" x 16" |
Shipping Weight | 807 lbs | 870 lbs |
Shipping Crate Size |
|
|
Shipping Crate Material | Wood | Wood |
WHO BUYS THESE MILLS FROM SMITHY?
IS THE TOOL PACK HELPFUL?
WHAT DO YOU MEAN BY “INSPECTED TWICE?”
WHY ARE THESE MILLS BETTER THAN OTHERS ON THE MARKET?
HOW LONG HAVE YOU BEEN SELLING THESE MILLS?
DO MANY LATHE BUYERS ALSO PURCHASE MILLING MACHINES?
Yes, the MI-1440 lathe matches well with the MI-409MZ milling machine - a machine shop combo that was built to last. Many customers buy this combination.
WHY SHOULD I BUY A MILLING MACHINE FROM SMITHY?
