409 PRO Milling Machine with XYZ Powerfeed

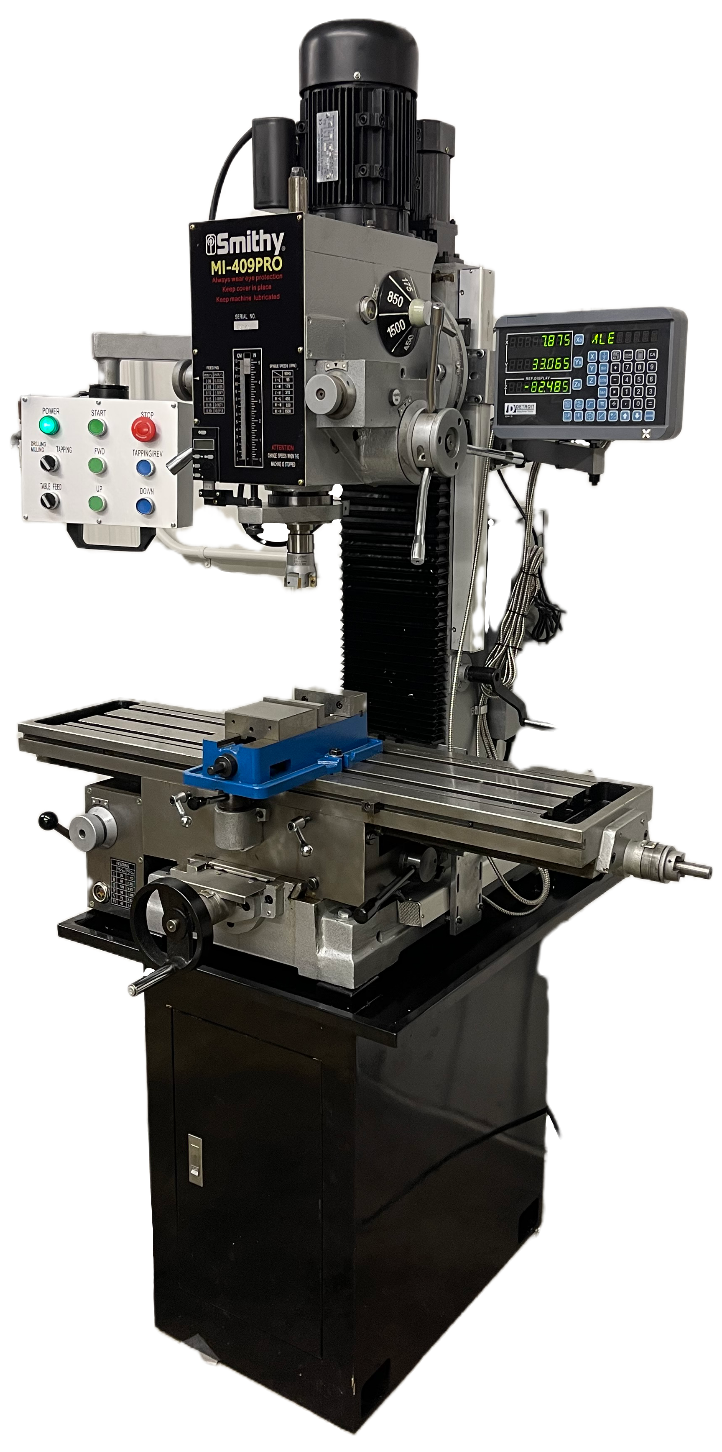

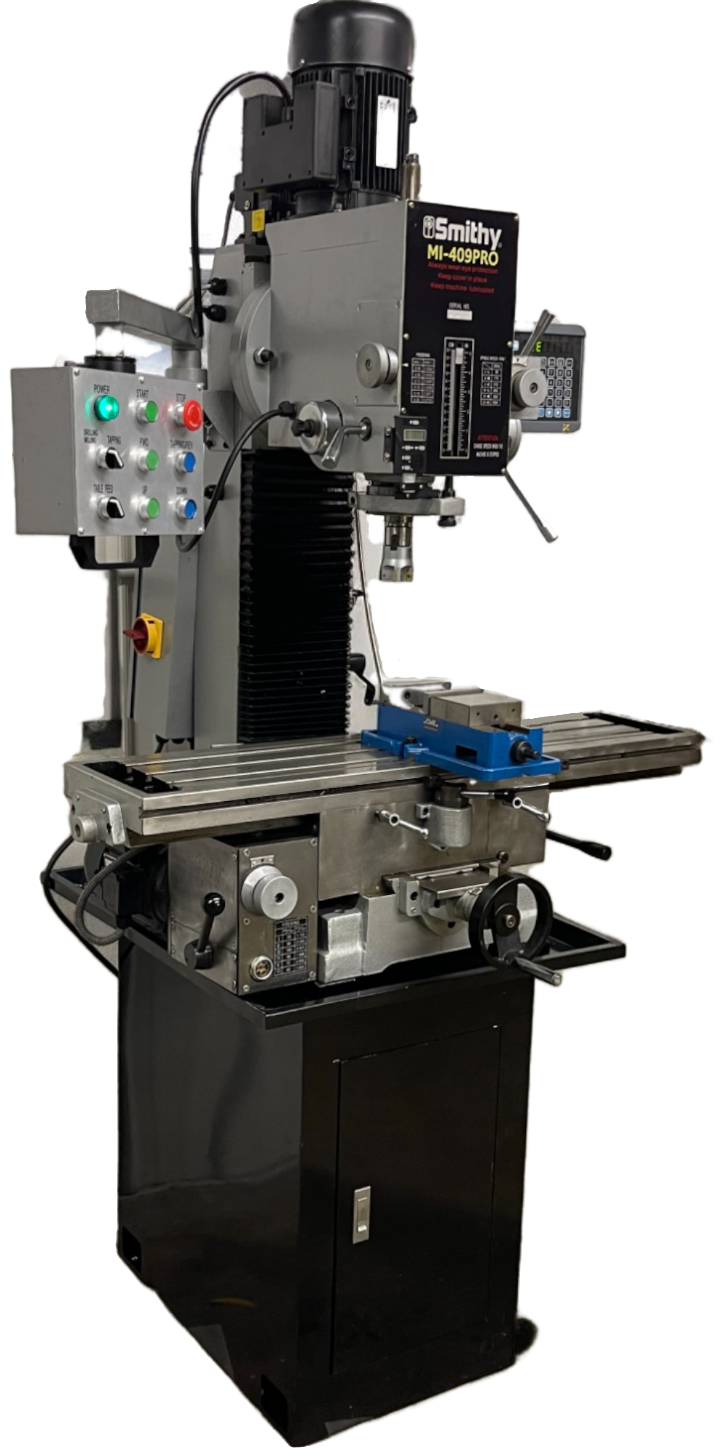

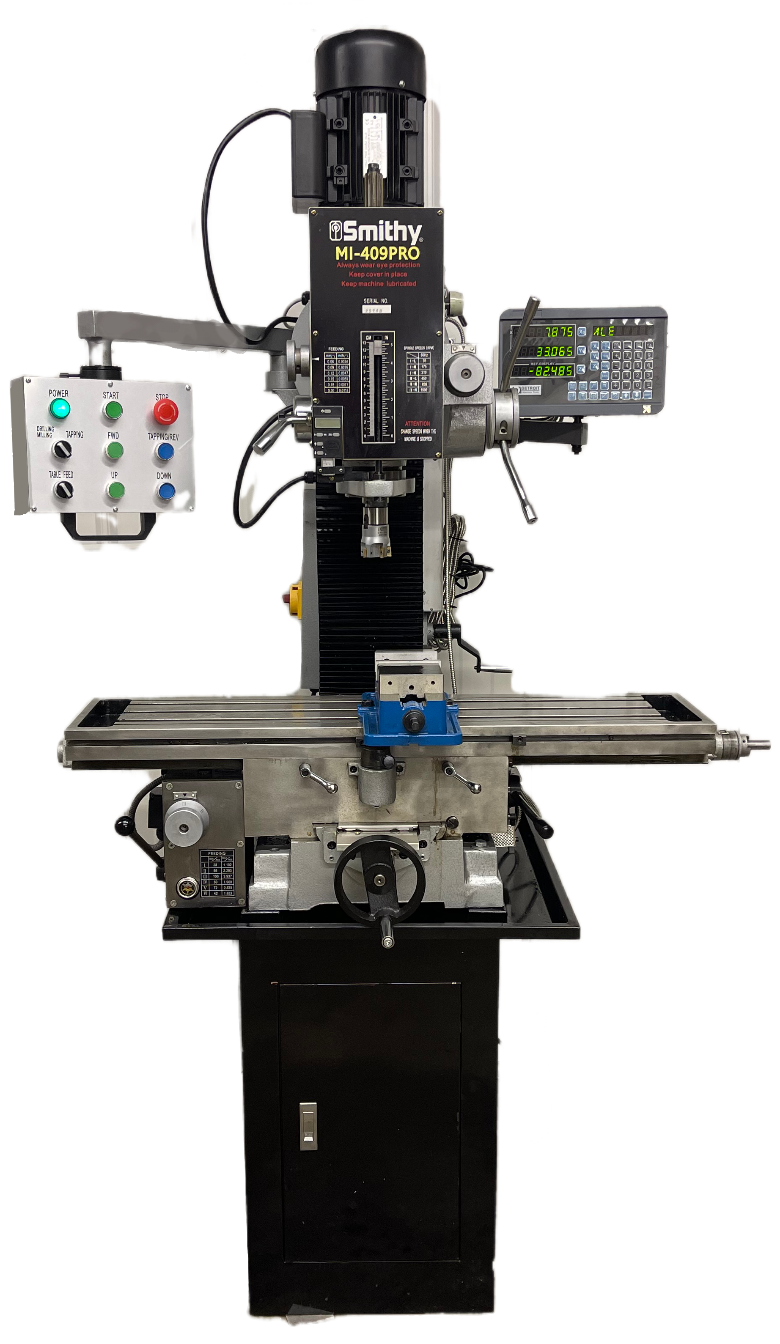

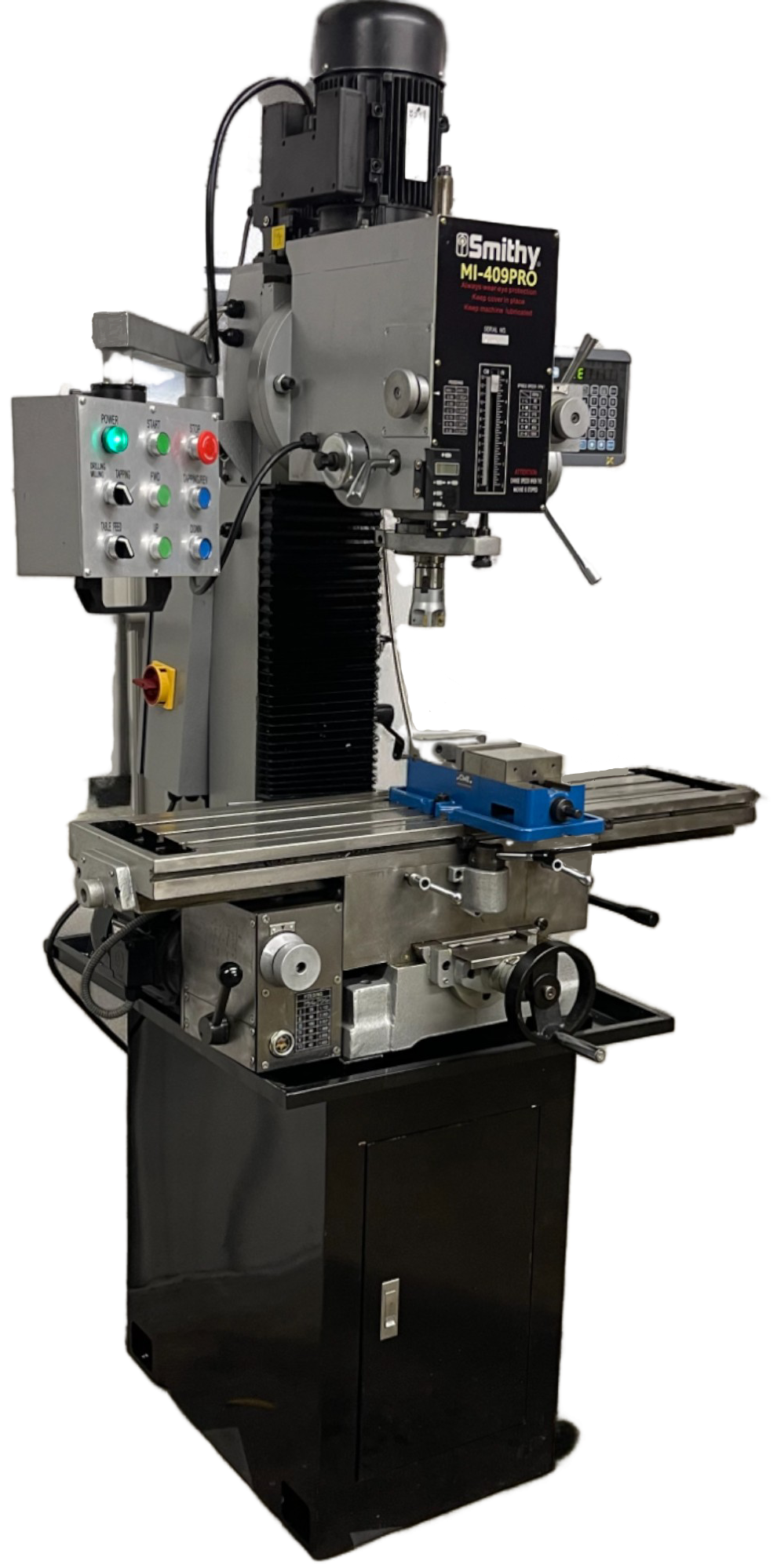

Smithy 409 PRO Milling Machine

Let’s welcome back! The all new, all powered Smithy 409 PRO Milling Machine

We’ve worked hard to make needed changes to the MI-409 PRO so we could bring this always popular milling machine model back to the market.

NOW – Get the all NEW “FOUR POINT POWERFEED” MI-409 PRO and you’ll have a powerful and accurate milling machine on your benchtop that is a dream to operate.

FEATURES

MI-409 PRO - Features

1) Gear Drive X Axis Power Feed: Adjust the hand located on the left side of the machine base to engage, disengage and change direction on the X axis power feed gear drive.

2) Gear Drive Y Axis Power Feed: Adjust the handle located on the right side of the machine base to engage, disengage and change direction on the Y axis gear drive.

3) Powered Mill Head Lift: Raise and lower mill head with the push of a button. No more hand cranking required.

4) Gear Drive Mill Quill with Auto-Feed: Smooth milling feed with auto adjustment for depth of cut. Provides rapid, accurate milling, as well as capabilities for tapping and boring. Allows for tapping of blind holes and boring to chosen depth.

 MI-409 PRO - Advantages

1) Easier to Use: The NEW ergonomic improvements to this machine model will help you to get more work done; with less effort and with improved efficiency. It’ll reduce operator fatigue and help you “power through the day”.

2) Smoother Part Finish: A consistent and steady feed rate, thanks to gear drive power assures a smoother, more accurate finish. Better parts with less rework.

3) Longer Tool Life: A steady, controlled feed rate also optimized tool contact with material – assuring longer tool life. AND – Tooling is expensive!

4) Faster: With simplified process motions and fewer adjustments – you’ll get more work done. FASTER!!
