BIG FEATURES- SMALL PRICE
DO MORE than you thought Possible!

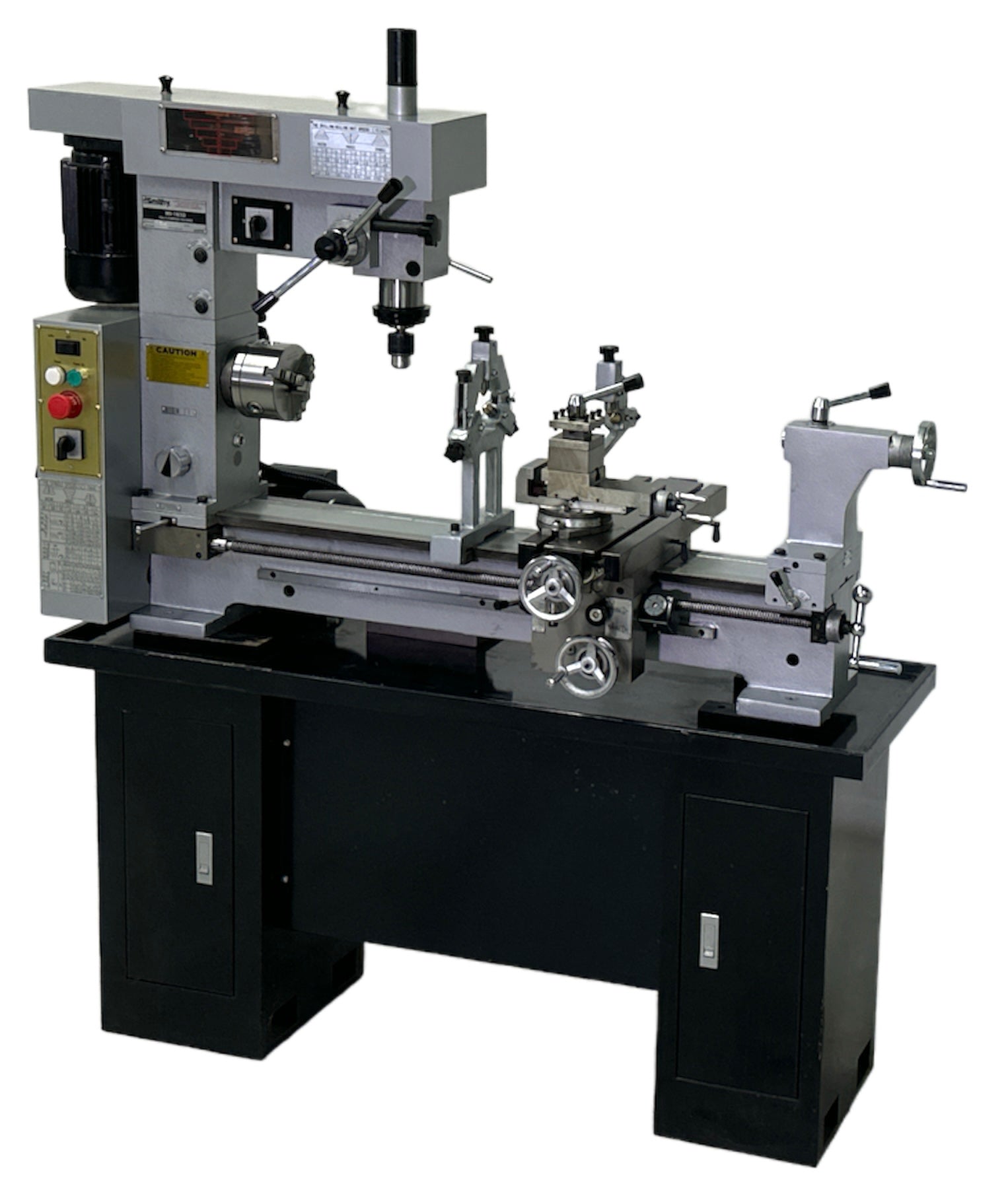

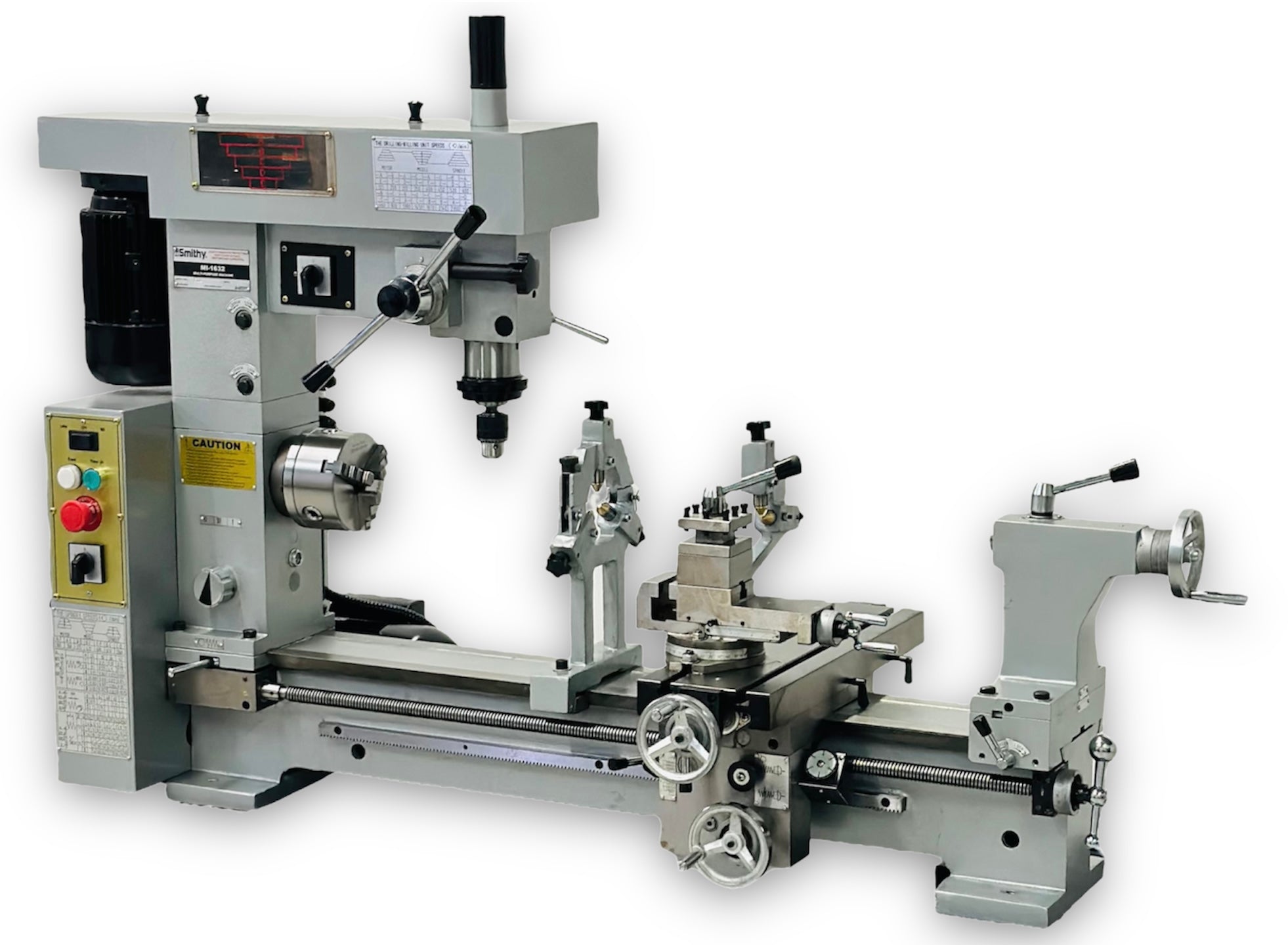

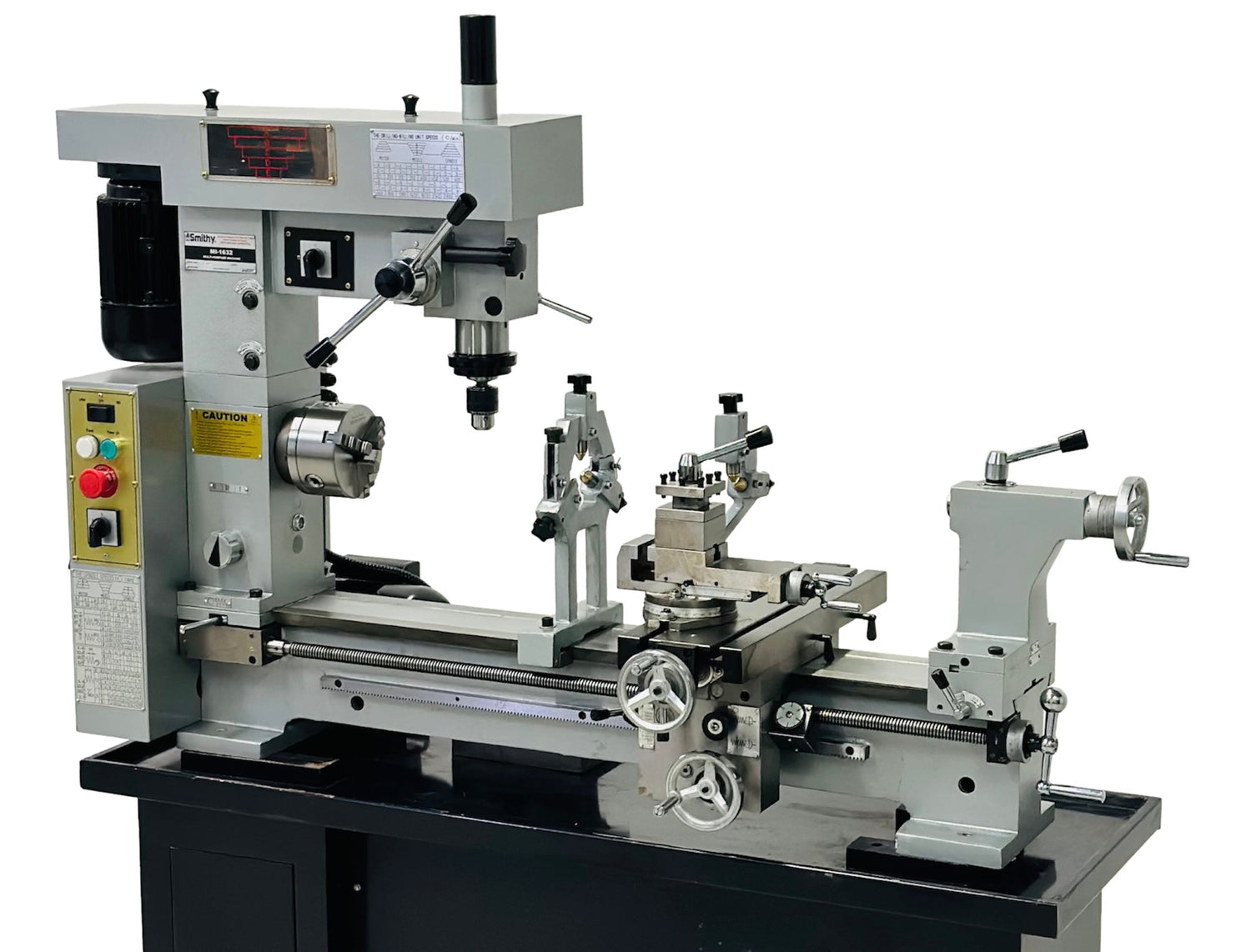

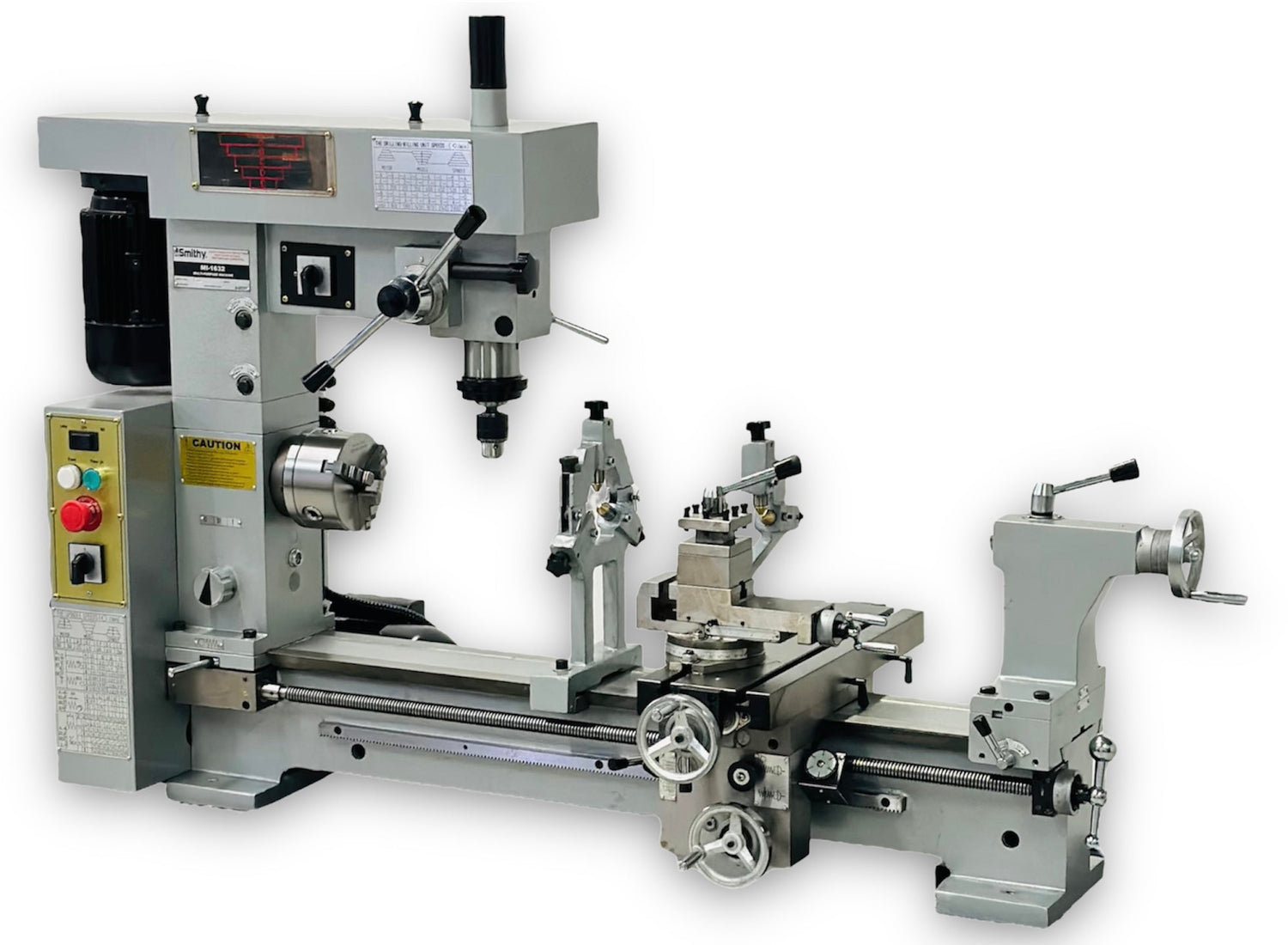

Smithy started the 3-in1 machine tool craze back in the mid-1980’s with the Midas. The Midas line remains as strong as ever: The all-in-one solution for individuals and companies that have smaller shops and budgets, do a moderate amount of machining, can forgo some “bells & whistles”… but demand Smithy quality and service all the way.
SPECS/FEATURES
SPECS/FEATURES
GENERAL SPECIFICATIONS
|
Model Name
|
MIDAS 1632 LTD
|
|
Shipping Weight
|
690 lbs
|
|
Machine Weight
|
567 lbs
|
|
Crate Size
|
57" x 23" x 45.5"
|
|
Work Area Requirements
|
36" x 72"
|
|
Length
|
60"
|
|
Width
|
25"
|
|
Height
|
40"
|
|
Footprint
|
18" x 60"
|
|
T-Slot Size
|
7/16"
|
|
Powerfeed (X-Axis)
|
Yes
|
|
Powerfeed (Y-Axis)
|
Yes
|
|
Powerfeed (Z-Axis)
|
No
|
|
Threading Dial
|
Yes
|
|
Table Size
|
5-5/16" x 18-5/8"
|
ELECTRICAL SPECIFICATIONS
|
Model
|
MIDAS 1632 LTD
|
|
Ampherage
|
8 (Lathe & Mill)
|
|
Horsepower
|
550 W (Lathe & Mill)
|
|
Motor Type
|
AC
|
|
Phase
|
Single
|
|
Voltage
|
110 A/C
|
|
Frequency
|
50/60 Hz
|
LATHE SPECIFICATIONS
|
Model
|
MIDAS 1632 LTD
|
|
Distance Between Centers
|
30"
|
|
Dial Calibration Leadscrew
|
.002"
|
|
Dial Calibration Longfeed Rack
|
.01"
|
|
Dial Calibration Crossfeed
|
.002"
|
|
Dial Calibration Tailstock
|
.001"
|
|
Dial Calibration On Toolpost
|
.002"
|
|
Feed Rate (X-Axis)
|
.0022-.014
|
|
Feed Rate (Y-Axis)
|
.0011-.020
|
|
Headstock Taper
|
MT4
|
|
Lathe Chuck Bore
|
1.16
|
|
Lathe Chuck Diameter
|
5”
|
|
Lathe Chuck - Max. Diam/W/P
|
5"
|
|
Lathe Chuck - Min. Diam/W/P
|
1/8"
|
|
Lathe Chuck Mount
|
Bolt-On
|
|
Lathe Chuck Type
|
3-Jaw Self Centering
|
|
Spindle Bore
|
1-1/16”
|
|
Spindle Speeds
|
Seven (160-1360 RPM)
|
|
Spindle Accuracy TIR
|
0.0016"
|
|
Swing Over Bed
|
16.5”
|
|
Swing Over Worktable
|
12"
|
|
Tailstock Offset
|
19/32"
|
|
Tailstock Taper
|
MT3
|
|
Tailstock Barrel Travel
|
3"
|
|
Threads (Metric)
|
0.75 to 6 mm
|
|
Threads (Inch)
|
SAE 4-120 TPI
|
|
Toolpost Travel
|
3”
|
|
Toolbit Size
|
1/2"
|
|
X-Axis Travel W/O Tailstock Or Threading Dial
|
30.6”
|
|
Y-Axis Travel
|
7.75”
|
MILL/DRILL SPECIFICATIONS
|
Model
|
MIDAS 1632 LTD
|
|
Dial Calibration Drill-Coarse Feed
|
0.04"
|
|
Dial Calibration Mill-Fine Feed
|
0.04"
|
|
Drawbars Size (Included)
|
12mm, 3/8"
|
|
Drill Chuck Size
|
1/2"
|
|
Drill Chuck Arbor
|
MT3/JT33
|
|
Feed Rate (X-Axis)
|
NA
|
|
Feed Rate (Y-Axis)
|
NA
|
|
Head Rotation
|
360°
|
|
Head Travel Z-Axis
|
0
|
|
Quill Diameter
|
2-3/4"
|
|
Quill Travel
|
4-1/16"
|
|
Spindle Center To Front Of Chuck
|
6.5-1/16"
|
|
Spindle Center To Lathe Spindle Flange
|
9.5”
|
|
Spindle Center To Column
|
11.25”
|
|
Spindle To Table Distance (Min.-Max.)
|
8.75-11 7/8”
|
|
Spindle Speeds
|
16 (125-3000 RPM)
|
|
Spindle Taper
|
MT3
|
|
Tool Size Limit
|
1"
|
|
X-Axis Travel
|
30.6
|
|
Y-Axis Travel
|
7.75”
|
