FTL400 - FLAT BED CNC TOOLROOM LATHE -

$31,400.00
October's Pre-Orders are almost sold, buy now to guarantee a machine! Receive bonus tooling!

GUARANTEED SAFE CHECKOUT

safe checkout

PRODUCT INFO



7.5 HP Servo Spindle

8" 3-Jaw Chuck, 4-Tool Turret/Gang Plate, Tailstock
This rugged CNC Toolroom Lathe features an original design structure, with mono-block base and lathe bed casting. This FTL400 CNC Toolroom Lathe weighs in at over 2 tons. A great foundation for high precision work on a wide variety of applications.

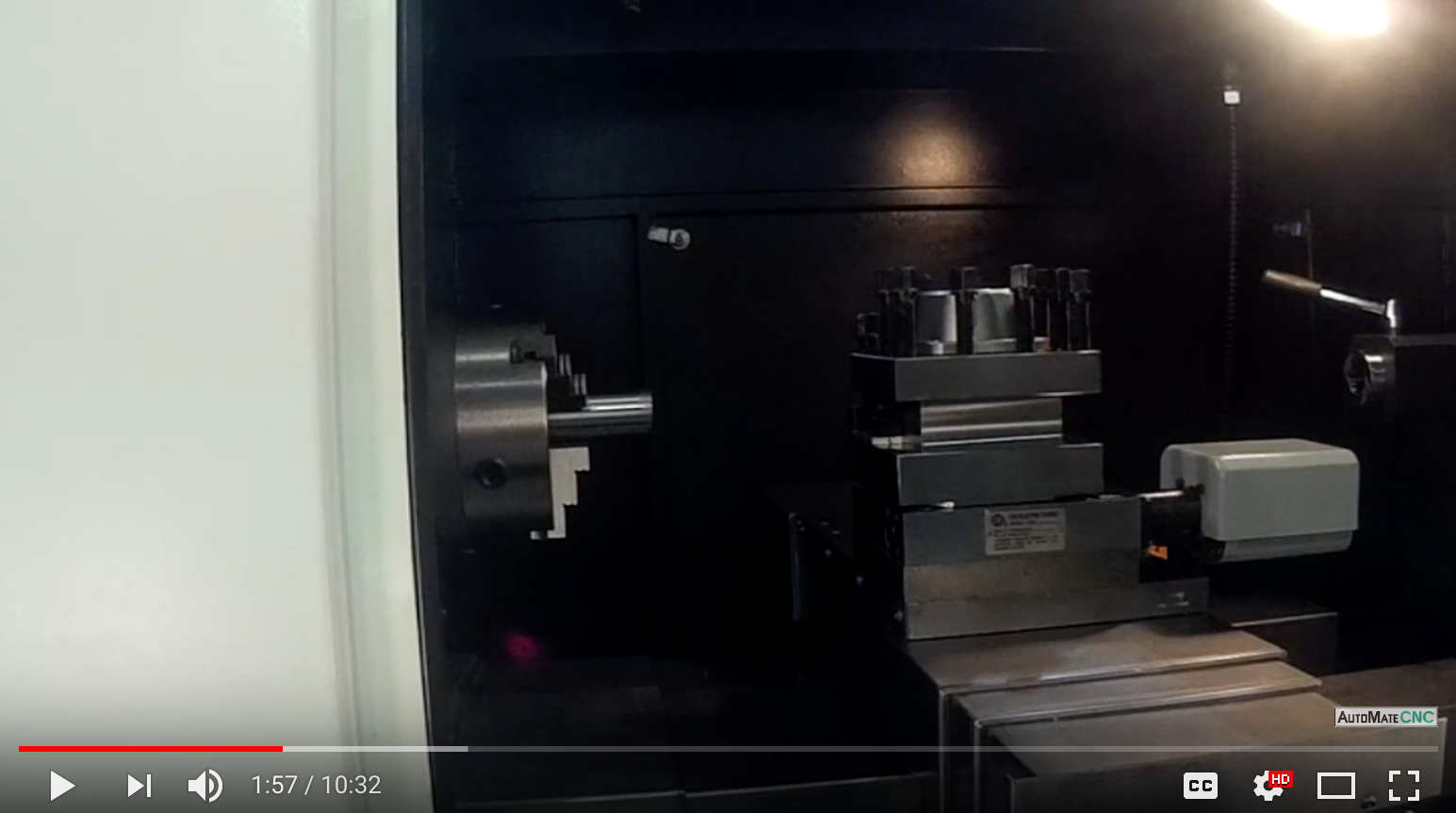

Standard tooling set-up on this CNC Toolroom Lathe includes 8" manual chuck, 4-position turret and manual tailstock.  This universal turning center is used in variety of settings - most often in production and machine shop settings.
Comes with the Siemens 808D CNC Control with conversational programming and on-screen help screens.  High quality components include Siemens servo motors and drives, Schneider electronics and PMI ball screws.

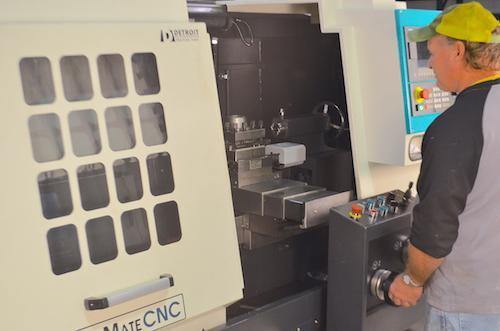

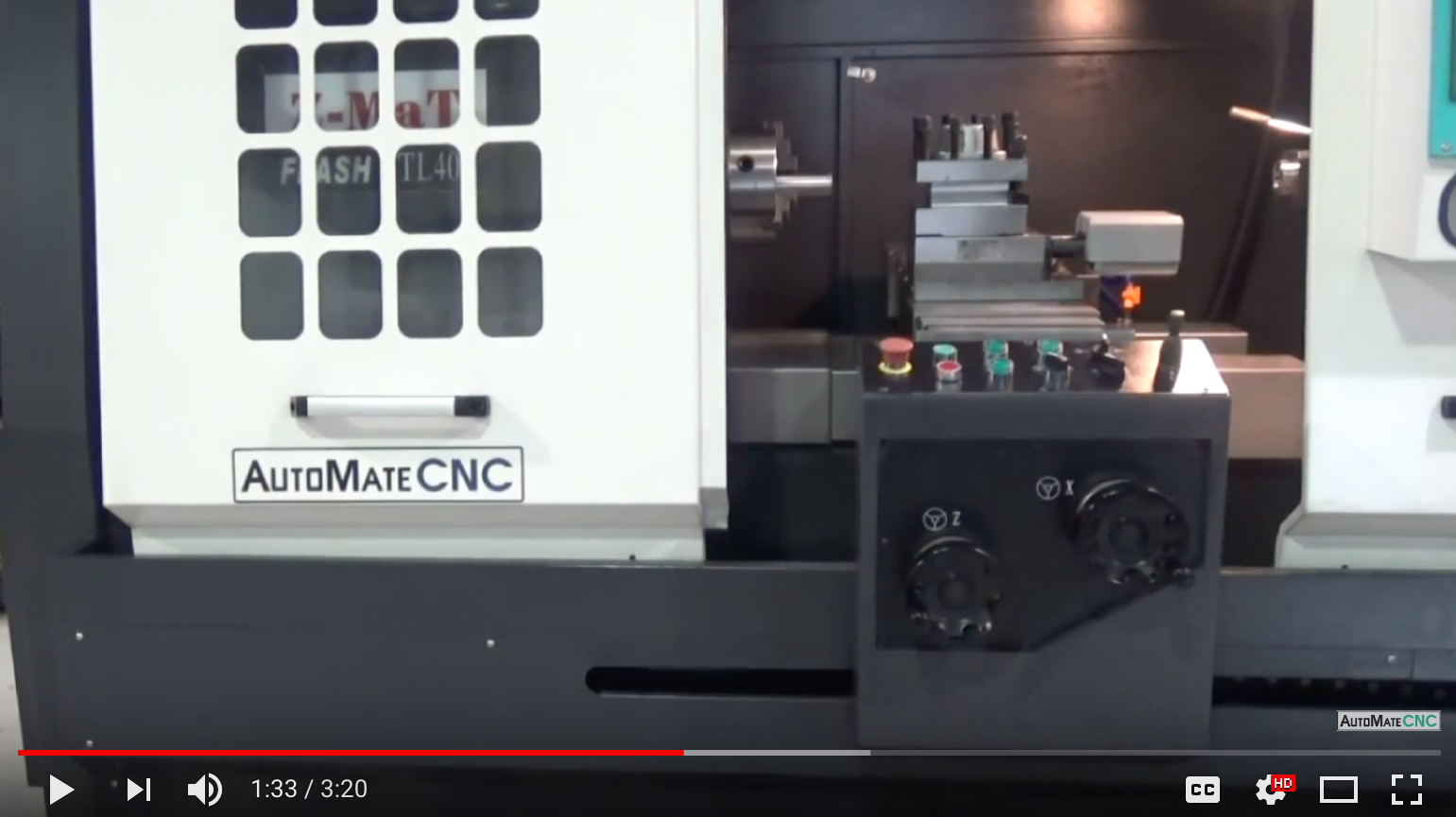

Optional manual turning module allows the operator to set the lathe to function in full CNC mode or engage the manual turning capabilities and operate the FTL400 like a manual toolroom lathe.


OVERVIEW

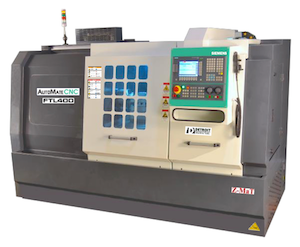

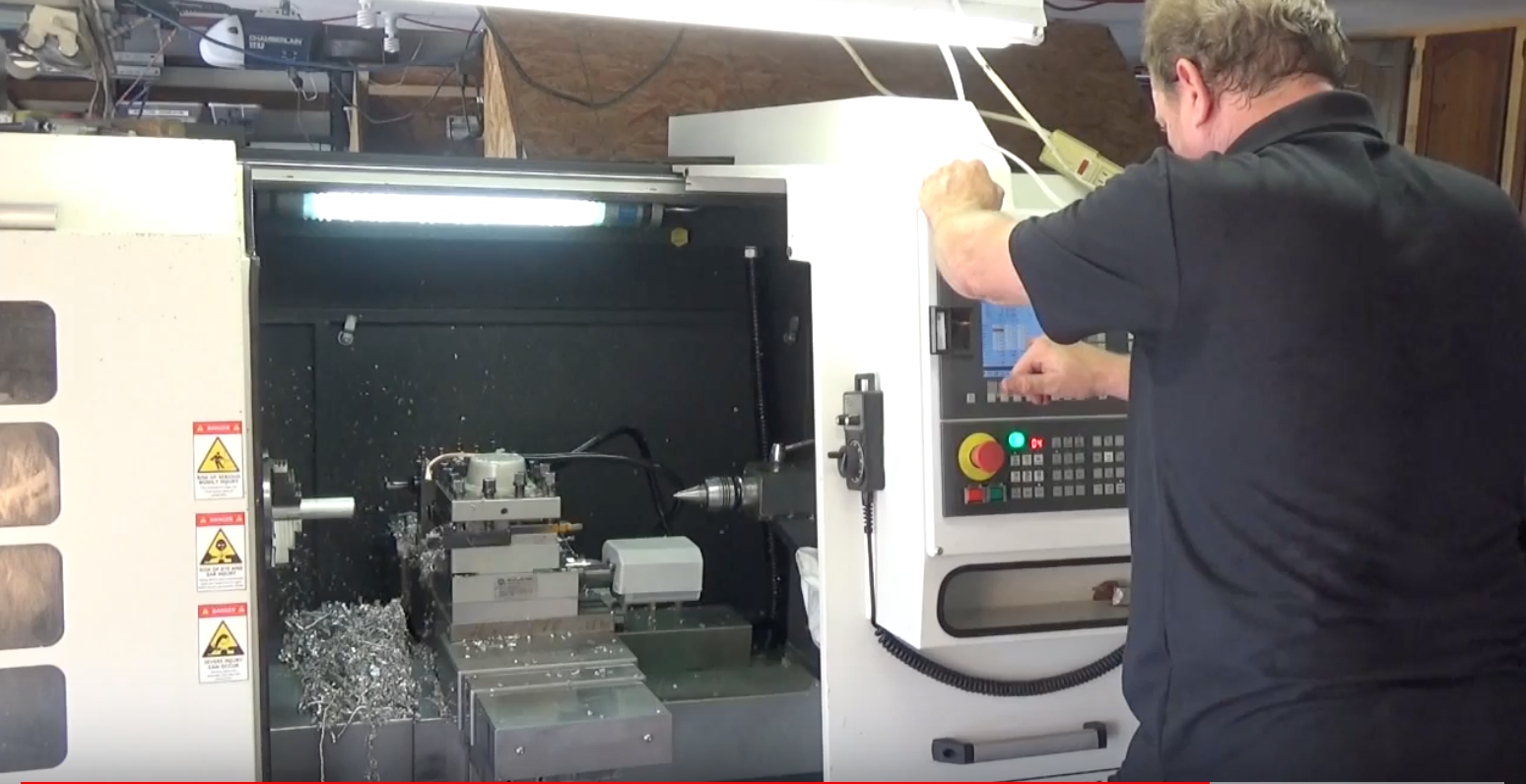

Flat Bed CNC Tool Room Lathe


Quality Manufacturing - Superior Features

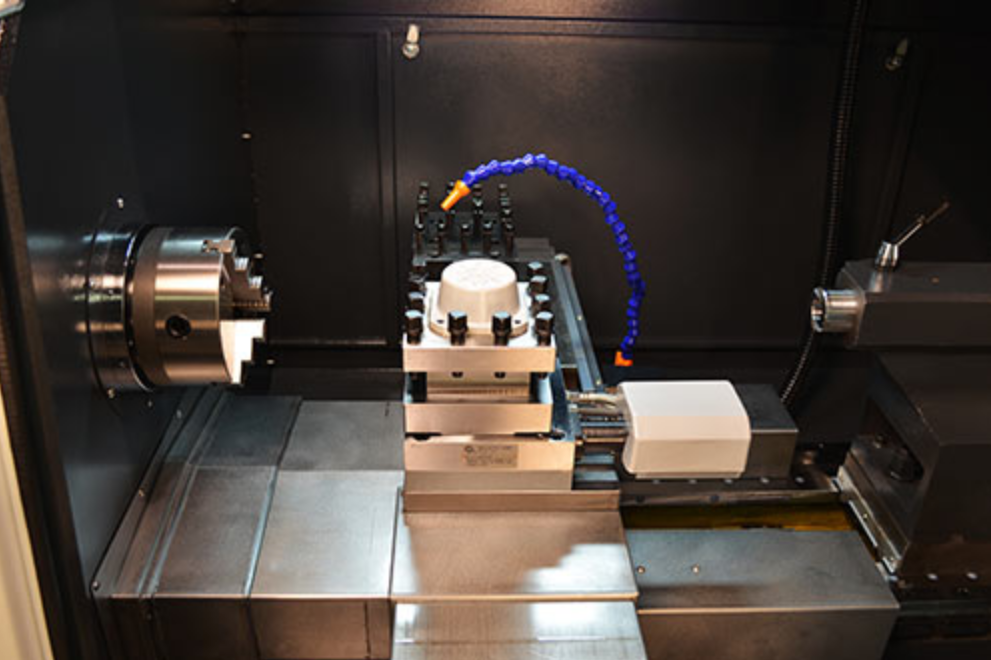

Built atop a uniquely designed one-piece solid cast base and lathe bed.  This rigid flat bed lathe provides a solid foundation for speed, precision and heavy chip removal.

High precision, power, 2.44" spindle bore and well designed, easy access ergonomic design add to the universal capabilities you expect from a top notch tool room lathe.

Comparable in size and features to the Haas Tool Room TL-1 lathe - at a much lower price.  Built to high precision standards for quality and functionality - using world standard, high quality components.


Performance Details:
  • Siemens 808D CNC Control
  • Servos and Drives on Axes
  • Closed Loop System
  • 8” 3-Jaw Manual Chuck
  • 2.44” Spindle Bore
  • 7.5 HP Spindle
  • 50-2000 RPM
  • 800 IPM Travel Speed
  • Travel: 11' on X / 26" on Z
  • Ways: Linear on X / Flat on Z
  • Manual / Hydraulic Tail Stock
  • Optional: Manual Turning Mode

Warranty Details:
  • 18 months on FTL400
  • 3 years total (2+1) on Siemens 808D Control



     FEATURES



    Lathe Machine
    Heavy Castings w/Cast Base Uniquely designed mono-block machine base and lathe bed casting is highly rigid and weighs over 2 tons. Very high weight-to-work cube ratio that assures very high rigidity, even when taking heavy cuts.
    Full Enclosure w/ Safety Features Machine is completely enclosed with two sliding front access doors to allow full access for large set-ups. Also has easy access panels on tailstock end, and machine back side. Electromagnetic lock keeps operator safe.
    2.44” Spindle Bore Generous spindle bore allows for pass through of large diameter stock. Easy access for optional pneumatic or hydraulic chuck.

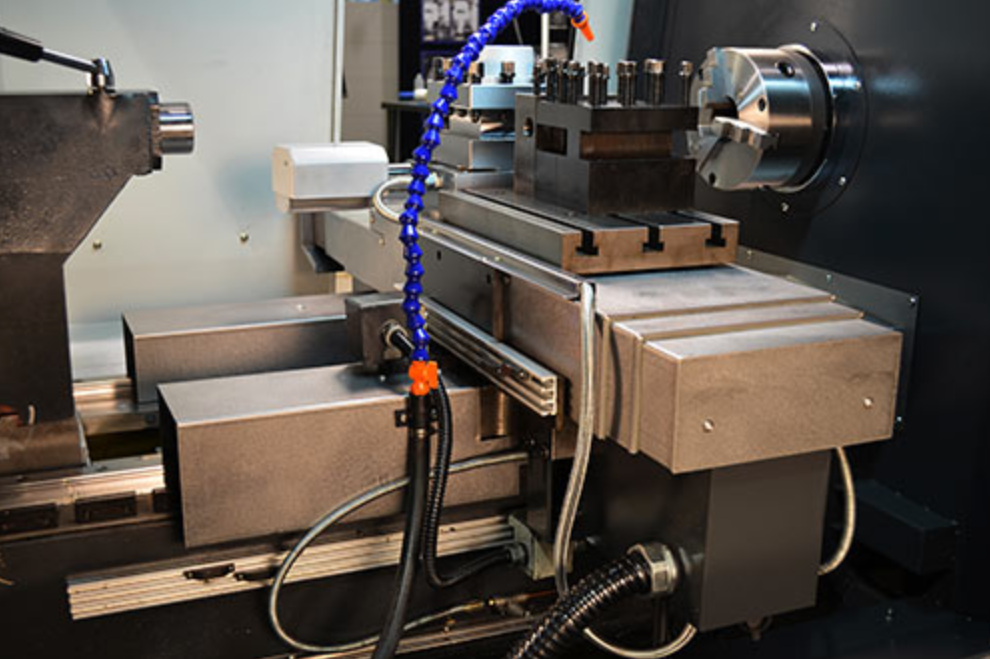

    Center Mounted Ball Screw/Way Covers Eliminates torque on the ball screw - Improving dynamic properties of the machine and increasing component life. Stainless steel way covers easily cover the ways and ball screw.  Provides much better protection to the ball screw, compared to traditional design.
    Manual 8” 3-Jaw Chuck With American Standard A2-6 spindle nose chuck mount. Manual 8” 3-Jaw scroll chuck is standard option - Adaptable for pneumatic chuck or 5C collet holders.
    4-Turret Tool Post Electric indexing tool post allows for convenient tooling changes using lower cost standard size tooling. Useful in small part run operations, machine shops and prototyping.
    Extra Tool Gang Plate Located directly behind the turret tool post, this BONUS gang plate allows for additional tooling set-ups. You're not limited to the tooling you can fit in the 4-tool turret tool post.
    Tool Box and Tools A set of the basic tools required for maintenance are included with this lathe. Gives you what you need to get up and running, and for routine maintenance.
    Heavy Duty Manual Tail Stock In-Line heavy-duty tailstock operates efficiently and accurately.  With over 17” of travel on the tail stock and 4” of quill travel, this manual tail stock expands machine capabilities.
    Foundation Pads Heavy machined leveling pads that adjust the height to keep your machine aligned and balanced. Solid multi-point contact with shop floor reduces vibrations and increases accuracy.
    Drive System

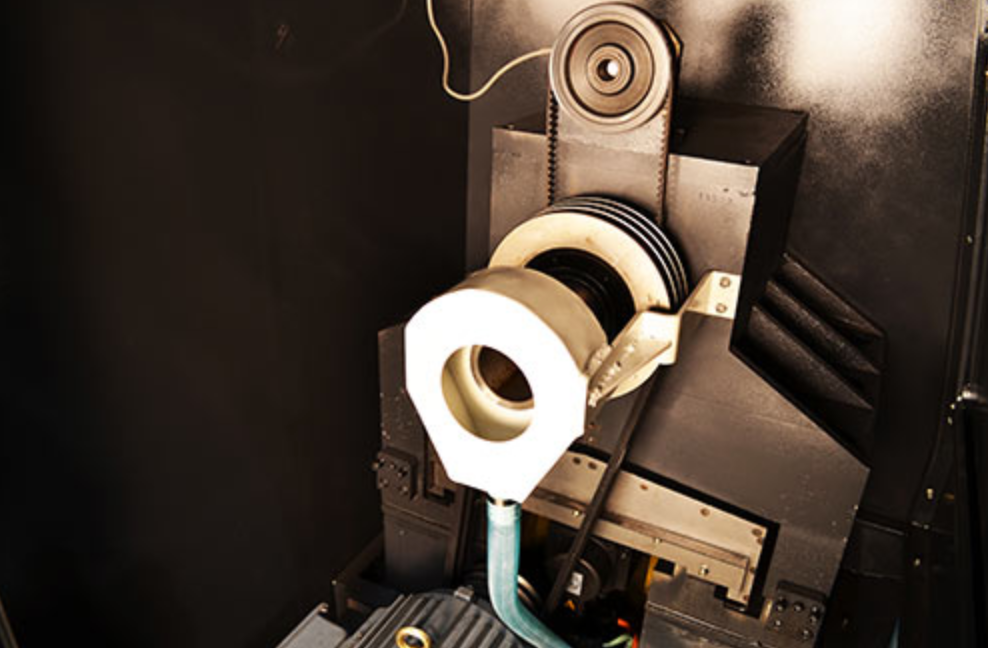

    7.5 HP Servo Spindle Drive Plenty of power to match the machine’s capacity. PLUS, rigid tapping and spindle positioning capabilities.
    50-3000 Spindle Speed Range Servo driven spindle provides rapid speed changes, from 50 to 3000 RPMs in a single speed range. No need for changing gears or belts. Constant torque rise, even at low RPM are assured with the servo drive.
    800 IPM Feed Rates Faster speeds equals higher production rates. The Siemens industrial control, axis servo drive system and linear ways provide the power and control that allows for higher speeds.

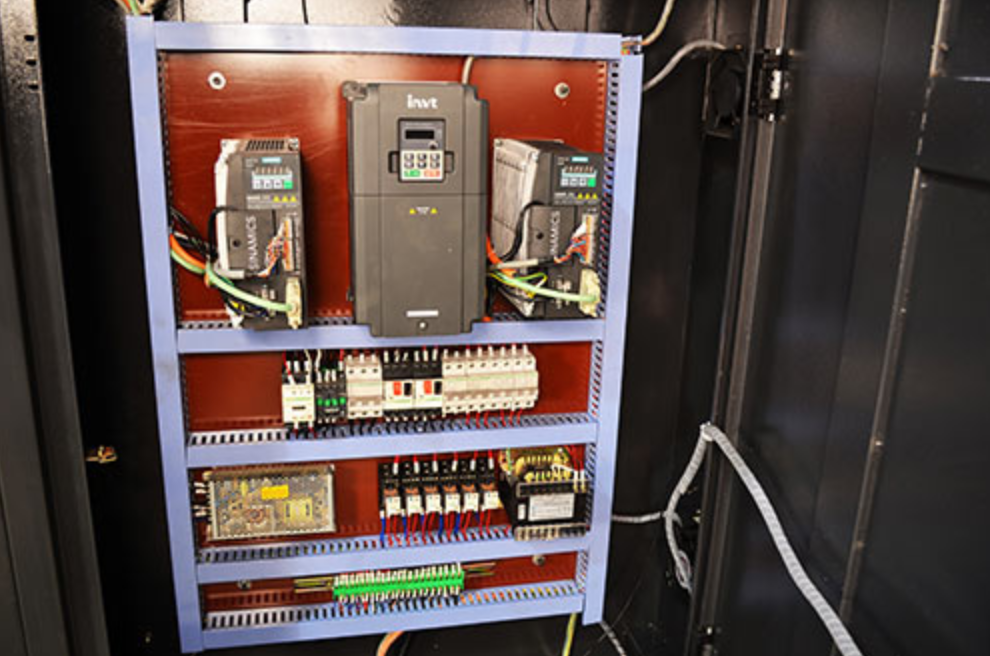

    Schneider Electrical Components One reason we can offer an 18 month machine warranty is because of the recognized quality and reliability of Schneider Electrical components. Highest reliability rating - highly efficient design reduces power usage.
    Safety/Operation
    Auxiliary Cycle Start Easy access buttons allow operator to operate pneumatic or hydraulic chuck with the push of a button. Having a second E-Stop within easy reach also adds to the safety features of this lathe.

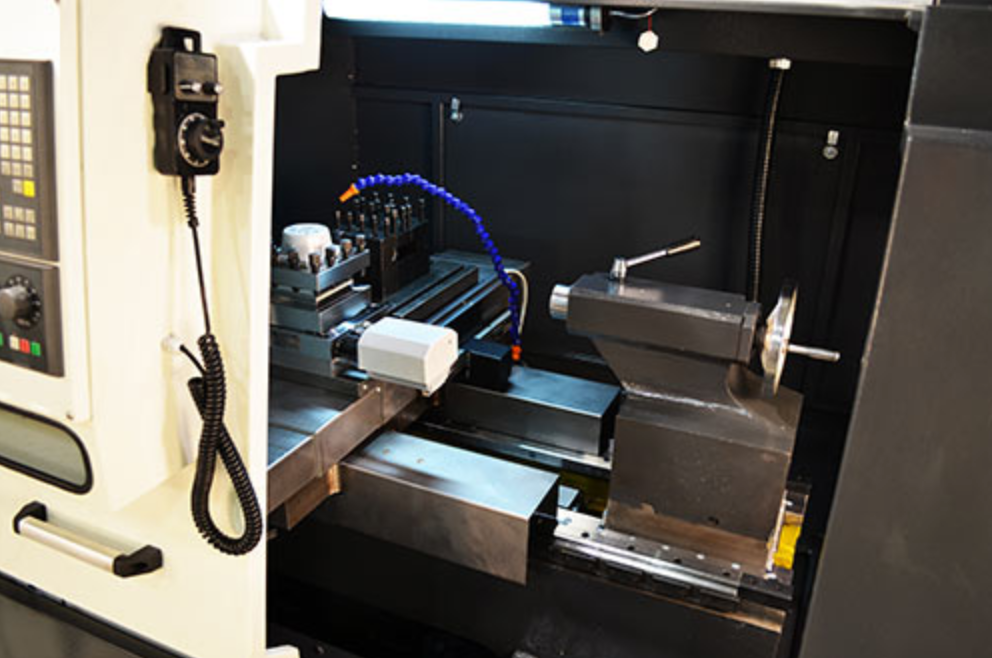

    Manual Pulse Generator Handheld pendant that allows operator to be independent from the main control panel. The rotating knob generates pulses that are sent to the machine control, allowing the operator to move the lathe a predetermined distance with each click of the knob detent.

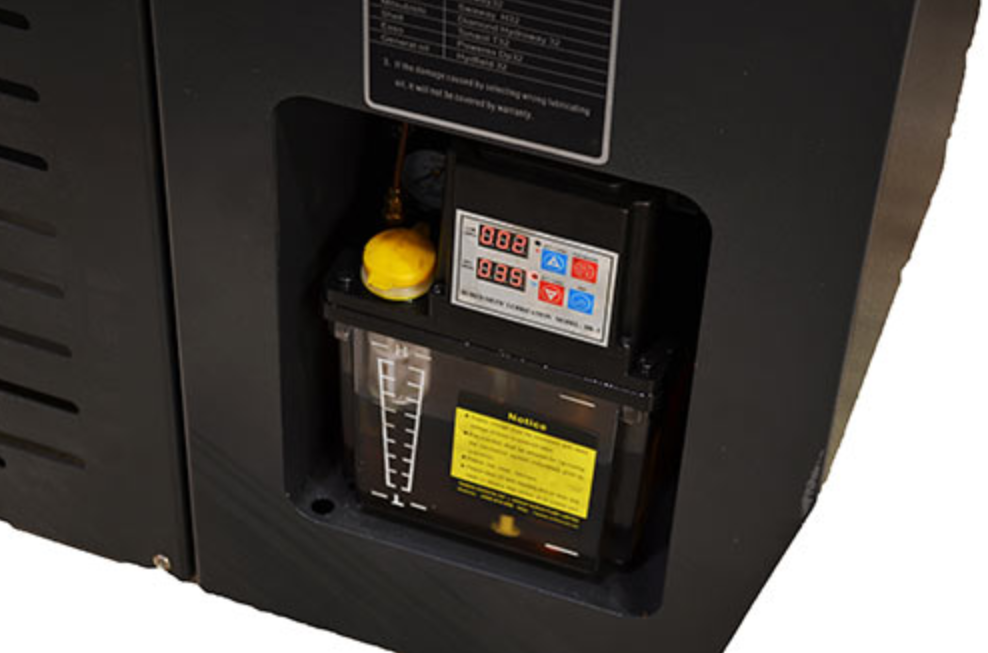

    Automatic Lubrication System Lubricates all wear points during machine operation at continuous time intervals. Benefits include reduced labor and material costs and significant extension of bearing life.
    Programmable Coolant System Control coolant flow at the control panel using standard M-Codes. Cycle times can be significantly reduced, feeding and cutting speeds may be significantly increased. Proper cooling extends life of cutting tools.
    Work Light Focused lighting elements increase operator efficiency and reduce fatigue. This light is flicker resistant, waterproof, and resistant to both cooling and lubricants. It is also resitant to impacts and vibrations.
    Tri-Color Alarm Light Green light turns red when control alarm recognizes a machining error or machine malfunction. An operator standing away from the machine is visually alerted by the activated alarm light when machining cycle is finished or machine errors out.
    Siemens 808D CNC Control
    Closed Loop System System directly monitors motor position and velocity in real time. The system then automatically makes corrections to assure correct tool positioning. High accuracy and maximum parts quality ensure a minimal rejection rate. Also assures smoother surface finishes.
    Siemens Servos and Drives Achieves rapid acceleration and higher speeds - Maintains high torque throughout speed range. Motor is highly efficient - and it stays cool. Quiet at high speeds, while having a vibration free operation.
    Ideal for CNC Beginners Ideal for entry level CNC users, the innovative integrative startGUIDE from Siemens provides an on-line digital help function on every screen. Helpful instructions are available anytime - at a push of a button.
    Simple & Intuitive Interface Well designed conversational programming functions and Wizards from Siemens help streamline programming at the control panel. All Siemens 808D controls come standard with this SINUMERIK Operate BASIC functionality.
    Compact and Robust Industrial panel design with hardened features is ideal for harsh environments. Small compact design matches smaller machines tools like the AutoMate CNC line.
    USB Connector Easily Handles Large Files This unique Siemens function allows for the streaming of large program files direct from a USB. Large files are no longer a concern - other CNC systems lack this robust level of functionality.
    Built-In Helps Several Siemens provided “assists” help streamline programming functions. One example would be Hot Keys. With the Hot Key function, machine operators can easily access commonly used screens using operator defined hot keys.





    SPECIFICATIONS



    GENERAL SPECIFICATIONS - AUTOMATE CNC TOOLROOM LATHES
    Model Name STH6 Slant Bed Toolroom Lathe FTL400 Flat Bed Toolroom Lathe
    Price $22,899 $26,899
    TURNING CAPACITIES
    Max Swing Over Bed 15” 20”
    Max Swing Over Carriage 5.25” 6.5" over gang plate, 9” with gang plate removed
    Max Length of Workpiece 22” 33” center to center
    Machine Repeatability .0002” .0002”
    TRAVELS & FEED RATES
    X Axis 12” 11”
    Z Axis 16” 28”
    X-Axis Rapids 320 IPM 750 IPM
    Z-Axis Rapids 480 IPM 750 IPM
    Max Cutting Speed 100 IPM 315 IPM
    SPINDLE
    Spindle Power 5 HP 7.5 HP
    RPM Range 50-3000 50-2000
    Spindle Bore 1.89” 2.44”
    Spindle Nose Taper A2-5 A2-6
    Chuck Type 5” Manual 3-Jaw Chuck 8” Manual 3-Jaw Chuck
    TAILSTOCK (STANDARD)
    Type Manual Manual
    Quill Travel 4” 4”
    Quill Taper MT3 MT4
    WEIGHT/DIMENSIONS/CAPACITIES
    Machine Weight 4300 Lbs 5500 Lbs
    Machine Dimensions 77” x 60” x 75” 105” x 63” x 70"
    Shipping Weight 4630 Lbs 5850 Lbs
    Coolant Capacity 10.6 Gal 17.2 Gal
    Hydraulic Capacity 13.2 Gal 13.2 Gal
    Power (Standard) 220V 3 Phase Power 220V 3 Phase Power
    Amperage Requirements 21 Amp 31.5 Amp
