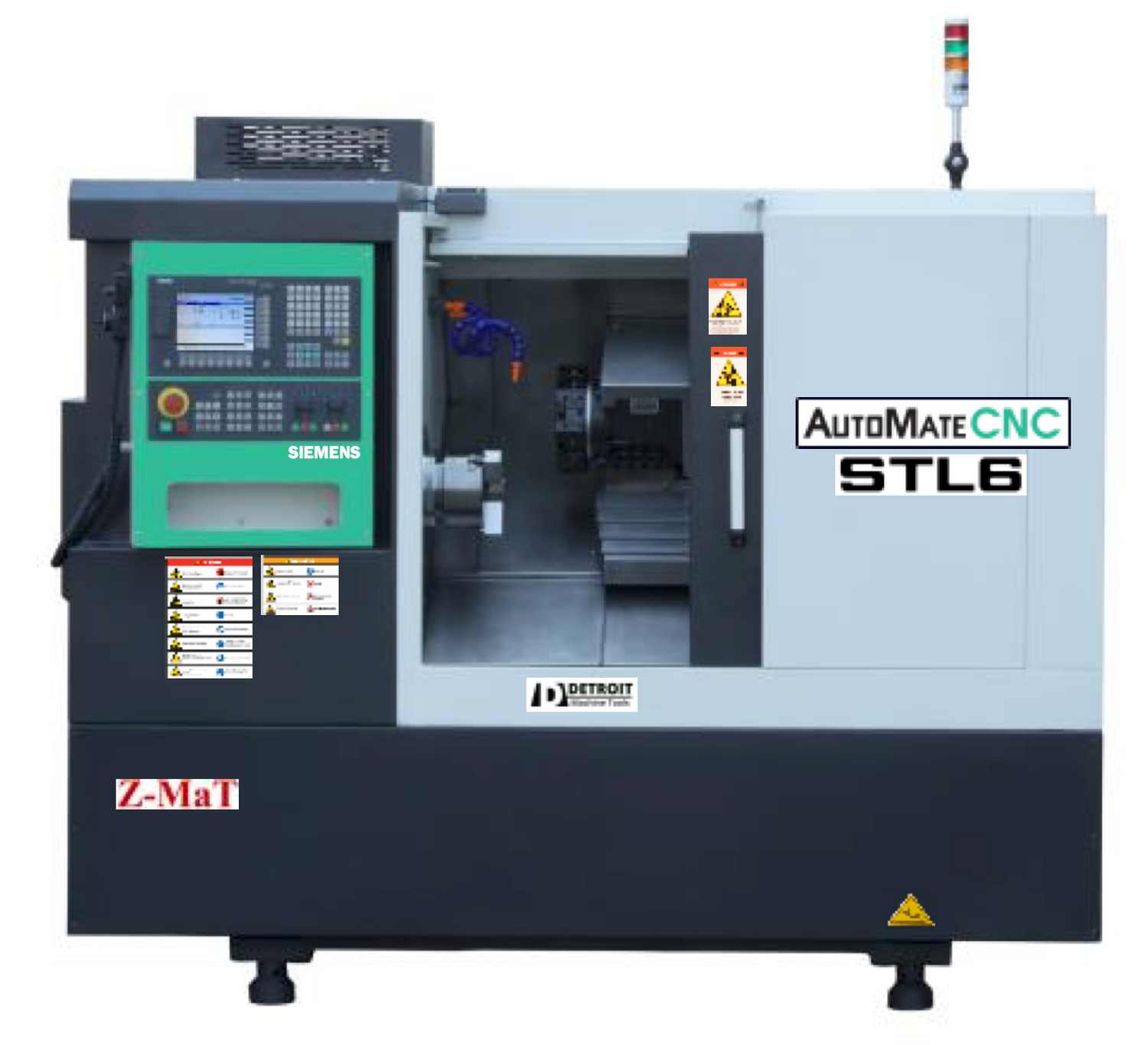

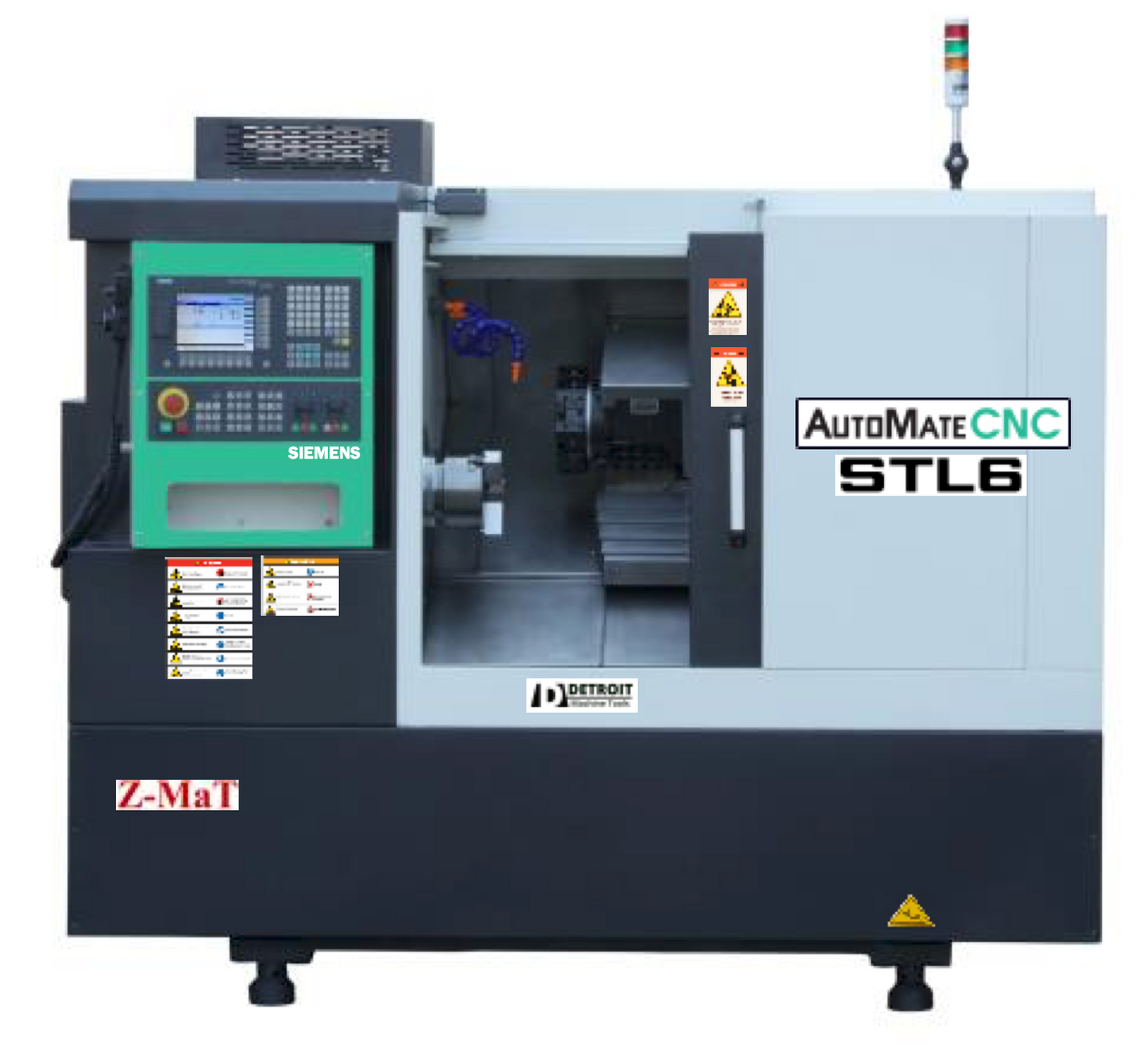

Slant Bed CNC Turret-Tailstock Lathe

Parts Making - Power and Precision
High speed production lathe with precision bi-directional indexing turret - PLUS, a versatile, hydraulic actuated tail stock. Similar mono-block bed/spindle design to the SL6 with similar rigidity and precision. However, the base casting on the STL6 is a bit different, in order to accomodate the tailstock.

The tailstock slides on linear guides that line-up in front of and parallel to the lathe bed.  The tail stock on the STL6 is not mounted on the machine ways, but on it's own set of linear ways.

The addition of the tail stock allows for machining of longer work pieces that require support during turning operations. The STL6 is a popular model for machine shops and contract manufacturers that want a CNC lathe that allows them broader capabilites.

The high quality, 8-position turret has high positioning accuracy and repeatability. Bi-directional indexing of the turret allows for the shortest indexing and cycle time.

Performance Details:
  • Siemens 808D CNC Control
  • Servos and Closed Loop System
  • True Slant Bed – Mono-Block Casting
  • Servo Spindle – High Speed/Torque
  • 2” Spindle Bore
  • 7.5 HP Spindle
  • Travel: X = 6”/Z = 12”
  • 800 IPM Feed Rate
  • 50-3000 RPM Spindle
  • Schneider Electrical Components
  • Bi-directional Indexing Turret
  • Hydraulic 6" 3-Jaw Chuck
  • Hydraulic Tail Stock
Warranty Details:
  • 18 months on STL6 lathe
  • 3 years total (2+1)on Siemens 808D Control





          Lathe Machine
          Mono-Block Cast Iron - True Slant Bed One piece cast iron foundation is a true 35 degree slant bed casting, providing large mass in a small footprint. More mass means higher rigidity and better heat dissipation.
          Slant Bed Design A slant bed lathe allows for better chip flow. A slant bed lathe can handle a large volume of chips, while protecting the ways from chips and debris. The operator has easier access to the chuck and work table with a slant bed - easier for set-up.

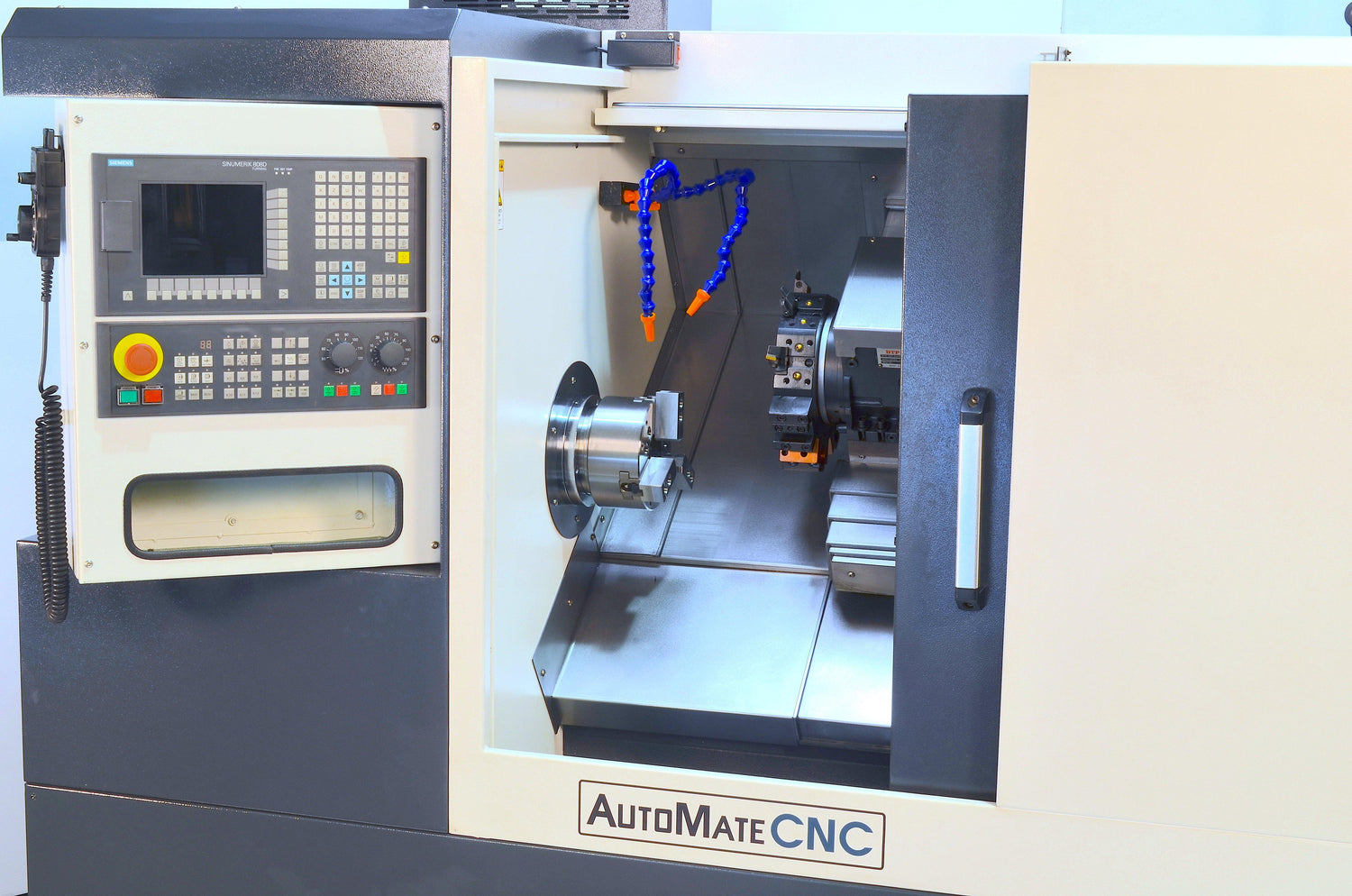

          Full Enclosure Machine is completely enclosed with a sliding front access door and easy access panels on tailstock end and machine back side. Coolant and chips are enclosed and properly recycled. Electromagnetic lock keeps operator safe.
          1.89” Spindle Bore With A2-5 spindle nose. Generous bore size for easy pass through of large stock and easy access for optional pneumatic or hydraulic chuck. Adaptable for automatic bar feeder.
          Hydraulic 6” 3-Jaw Chuck Standard features include a 6" hollow bore hydraulic actuated 3-Jaw Chuck.

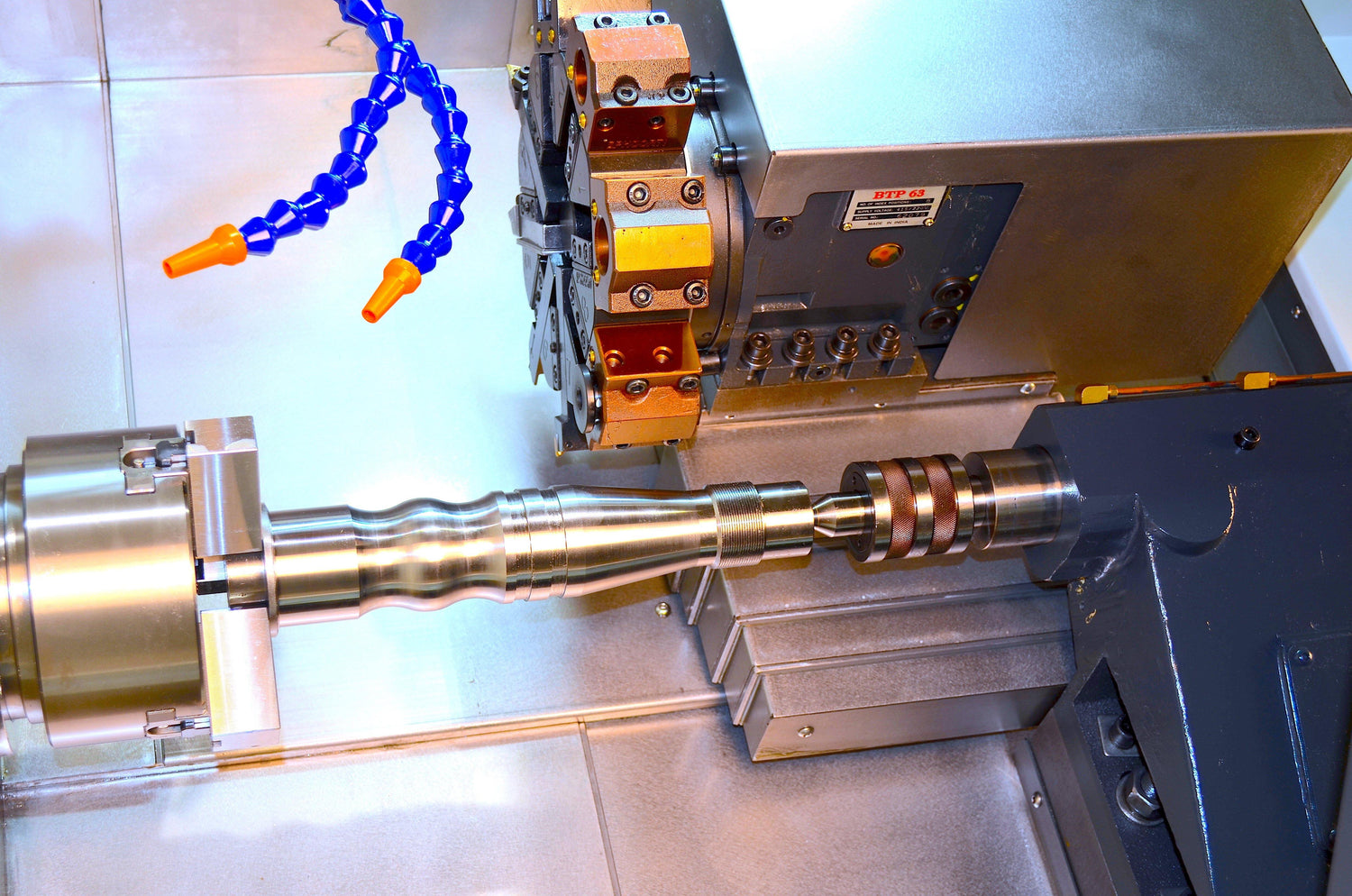

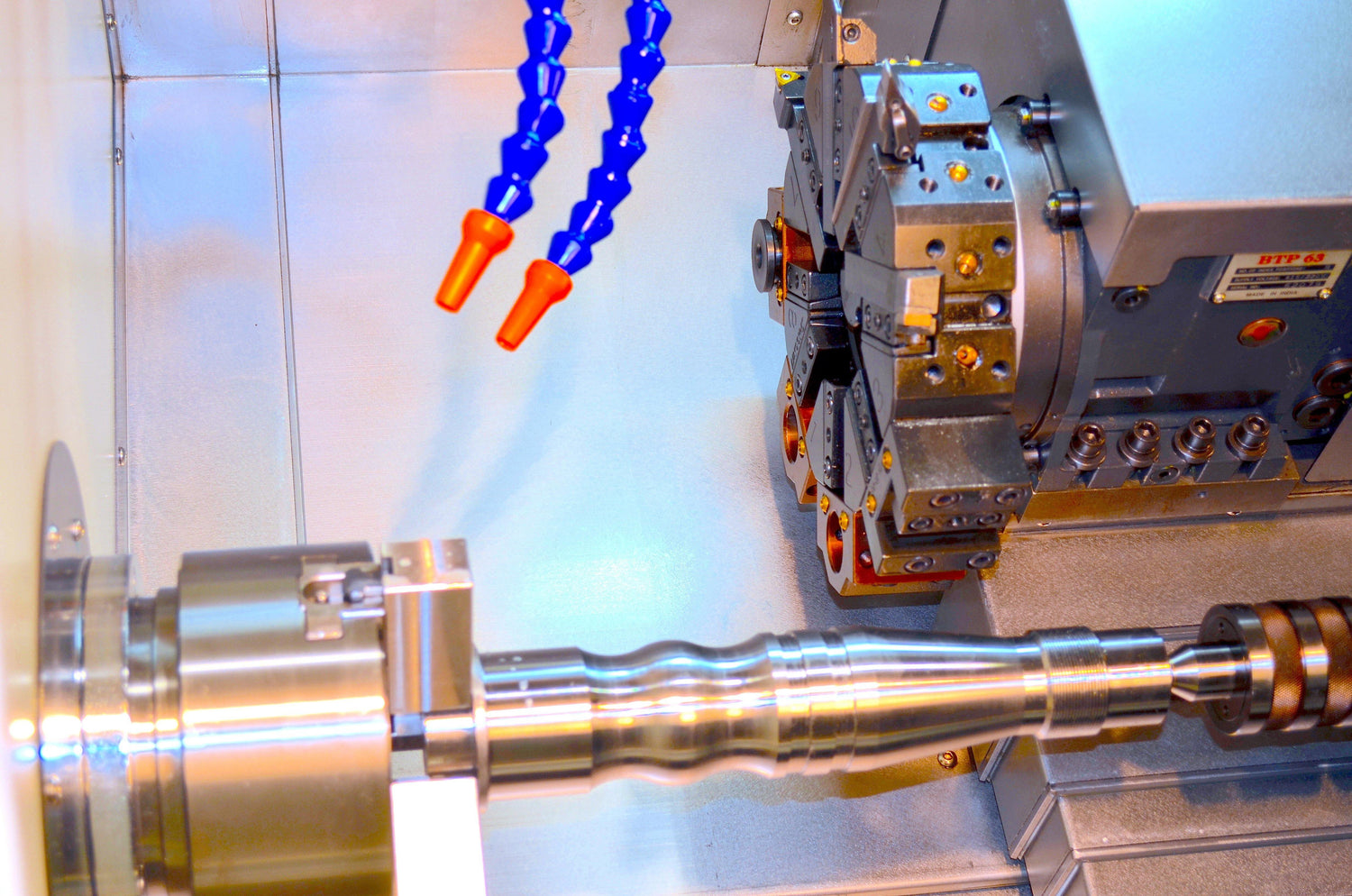

          8-Tool Precision Bi-Directional Turret Electric indexing turret allows for flexibility in tooling and programming option. Turret lathes tend to be easier to program, especially when cutting complex parts. Bi-direction changes allows for higher speed and efficiency.

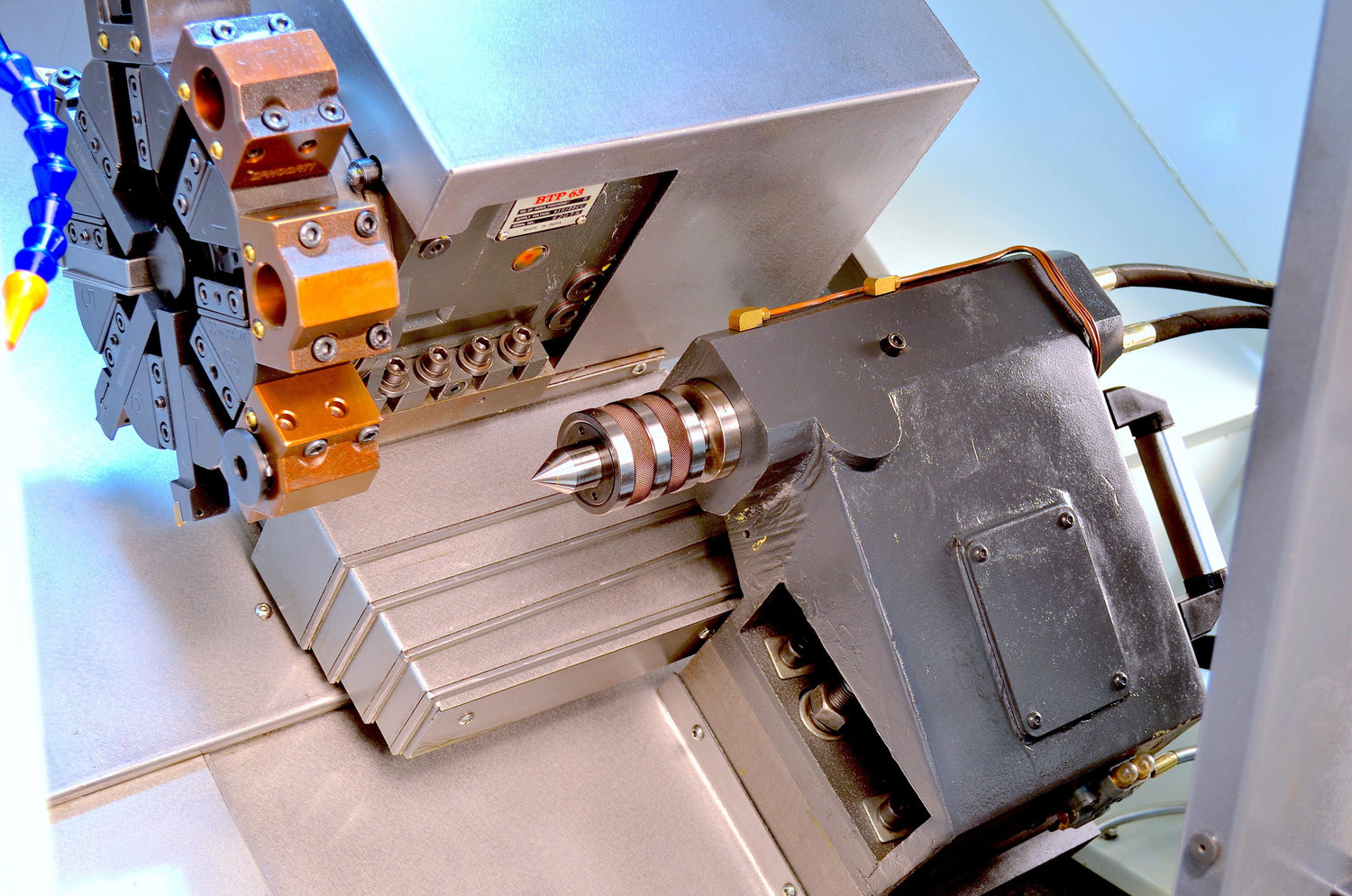

          Hydraulic Tail Stock Hydraulic actuated tail stock slides on it's own set of linear ways that are positioned in front of and parallel to the machine bed ways.  The tailstock body is positioned by a tracton bar, and automatically driven by a hydraulic actuator.  Up to 90% more efficient when compared to a manual tail stock.
          Tool Box and Tools A set of the basic tools required for maintenance are included with this lathe. Gives you what you need to get up and running and for routine maintenance.
          Foundation Pads Heavy machined leveling pads adjust the height to keep your machine aligned and balanced. Solid multi-point contact with shop floor reduces vibration, and increases accuracy.
          Drive System

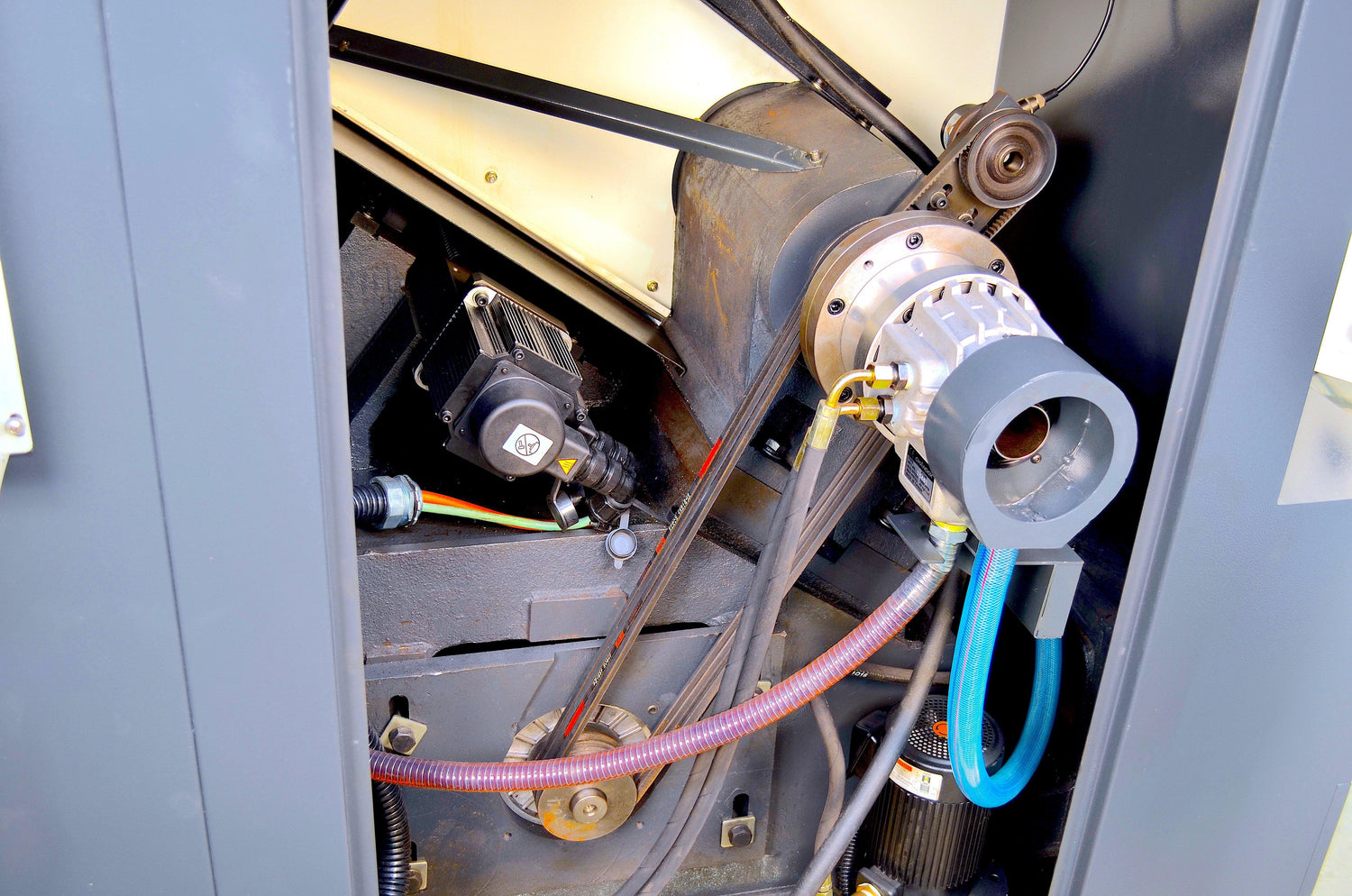

          7.5 HP Servo Spindle Drive Plenty of power to match the machine’s capacity - nearly twice the power of comparably priced machines. Capable of rigid tapping and spindle positioning.
          50-3000 Spindle Speed Range Infinitely variable speed changes, from 50 to 3000 RPMs in a single speed range. No need for changing gears or belts.
          Schneider Electrical Components One reason we can offer an 18 month machine warranty is because of the recognized quality and reliability of Schneider Electrical components. Highest reliability rating - highly efficient design reduces power usage.
          PMI Ball Screws World-class standard ball screws - efficiently transmit rotary motion to linear motion, allowing for high-speed, highly accurate axis movements. Accurate ball circle diameters through length of ball screw assures consistent drag torque and low noise.
          Precision Hiwin Linear Guideways w/Telescoping Covers World-class standard linear motion guideways come standard on the TS-1117. Stainless steel telescoping guards provide maximum protection of guideways from chips and coolant.
          Feed Rates: 800 IPM on X / 1000 IPM on Y Good power, plus high-quality linear guides and ball screws turn this lathe into a high speed turning center. The Siemens industrial CNC control and axis servo drive system provide the power and control that allows for higher speeds.  cutting and rapid feed rates are many times faster than competitive systems.
          Safety/Operation

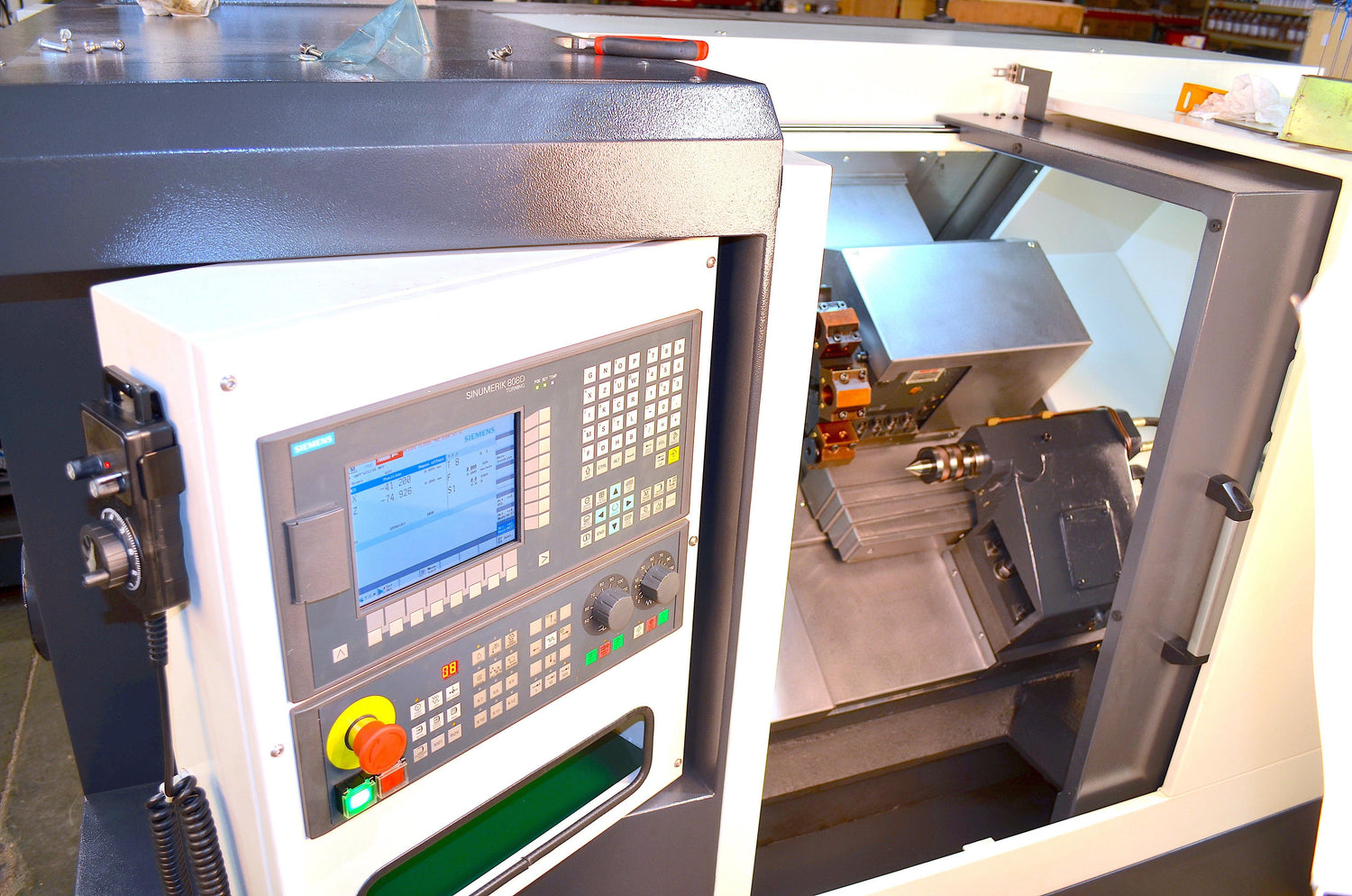

          Ergonomic Control Panel and Operator Interface Machine control panel adjusts and rotates up to 90 degrees. High tactile buttons, manual pulse generator, and convenient cycle start buttons improve operator convenience, efficiency, and safety.
          Auxiliary Cycle Start Easy access buttons allow operator to operate pneumatic or hydraulic chuck with the push of a button. Having a second E-Stop within easy reach also adds to the safety features of this lathe.
          Manual Pulse Generator Handheld pendant that allows the operator to be independent from the main control panel. The rotating knob generates pulses that are sent to the machine control, allowing the operator to move the lathe in a predetermined distance with each click of the knob.
          Automatic Lubrication System Lubricates all wear points during machine operation at continuous time intervals. Benefits include reduced labor and material costs and significant extension of bearing life.
          Programmable Coolant System Control coolant flow at the control panel, using standard M-Codes. Cycle times can be significantly reduced, while feed and cutting speeds may be significantly increased. Proper cooling extends life of cutting tools.
          Work Light Focused lighting elements increase operator efficiency and reduce fatigue. This light is flicker resistant, waterproof, and resistant to both cooling and lubricants. It is also resistant to impacts and vibrations.
          Tri-Color Alarm Light Green light turns red when control alarm recognizes a machining error or machine malfunction. An operator standing away from the machine is visually alerted by the activated alarm light when machining cycle is finished or machine errors out.
          Siemens 808D CNC Control
          Closed Loop System System directly monitors motor position and velocity in real time. The system then automatically makes corrections to assure the correct tool positioning. High accuracy and maximum parts quality ensure a minimal rejection rate. Also assures smoother surface finishes.
          Siemens Servos and Drives Achieves rapid acceleration and higher speeds - maintains high torque throughout speed range. Motor is highly efficient - and it stays cool. Quiet at high speeds while remaining vibration free during operation.
          Ideal for CNC Beginners Ideal for entry level CNC users, the innovative, integrative startGUIDE from Siemens provides an on-line digital help function on every screen. Helpful instructions are available anytime - at a push of a button.
          Simple & Intuitive Interface Well designed conversational programming functions and Wizards from Siemens help streamline programming at the control panel. All Siemens 808D controls come standard with this SINUMERIK Operate BASIC functionality.
          Compact and Robust Industrial panel design with hardened features is ideal for harsh environments. Small compact design matches smaller machines tools like the AutoMateCNC line.
          USB Connector Easily Handles Large Files This unique Siemens function allows for the streaming of large program files direct from a USB. Large files are no longer a concern - other CNC systems lack this robust level of functionality.
          Built-In Helps Several Siemens provided “assists” help streamline programming functions. One example would be Hot Keys. With the Hot Key function, machine operators can easily access commonly used screens using operator defined hot keys.





          GENERAL SPECIFICATIONS - AUTOMATE CNC TURNING CENTERS
          Model Name FL300-II  Flat Bed Turning Center FTL320 Flat Bed w/ Tailstock SL6 Slant Bed Turning Center STL6 Slant Bed Turning Center w/ Tailstock
          Price $23,459 $24,699 $25,995 $31,989
          TURNING CAPACITIES
          Max Swing Over Bed 17.5” 18" 15.75" 17”
          Max Swing Over Carriage 5.25” 6.5" 7.85" 8.5”
          Max Length of Workpiece 7” 20" 11.8" 9”
          Machine Repeatability .0002” .0002" .0002" .0002”
          TRAVELS & FEED RATES
          X Axis 14” 7.5" 11.75" 6”
          Z Axis 12” 13.5" 14" 11.75”
          X-Axis Rapids 950 IPM 984 IPM 800 IPM 750 IPM
          Z-Axis Rapids 950 IPM 400 IPM 800 IPM 800 IPM
          Max Cutting Speed 315 IPM 315 IPM 315 IPM 315 IPM
          SPINDLE
          Spindle Power 4 HP 7.37 HP 7.5 HP 5 HP (7 HP Optional)
          RPM Range 50-3000 50-3000 50-3000 50-3000 (5000 Optional)
          Spindle Bore 1.46” 1.89" 1.89" 1.89”
          Spindle Nose Taper A2-4 A2-5 A2-5 A2-5
          Chuck Type Pneumatic Chuck 6" Manual 3-Jaw Chuck 6" Manual 3-Jaw Chuck 6” Manual 3-Jaw Chuck (Hydraulic Chuck Optional)
          WEIGHT/DIMENSIONS/CAPACITIES
          Machine Weight 4220 Lbs 4720 Lbs 4800 Lbs 5500 Lbs
          Machine Dimensions 80” x 58” x 67.5” 82" x 60" x 68" 86.5" x 63" x 72" 87” x 64” x 72”
          Shipping Weight 4600 Lbs 5378 Lbs 5492 Lbs 5960 Lbs
          Air for Pneumatics 90 PSI N/A 90 PSI 90 PSI
          Coolant Capacity 11 Gal 11 Gal 25 Gal 21 Gal
          Hydraulic Capacity 11 Gal N/A 18.5 Gal 18.5 Gal
          Power (Standard) 220V 3 Phase Power 220V 3 Phase Power 220V 3 Phase Power 220V 3 Phase Power
          Amperage Requirements 20 Amp 30 Amp 35 Amp 29 Amp
