MI-1337L Manual Lathe

  • $3,799.00
    Unit price per
  • Save $510
Shipping calculated at checkout.

Smithy Gear Drive Bench Lathe

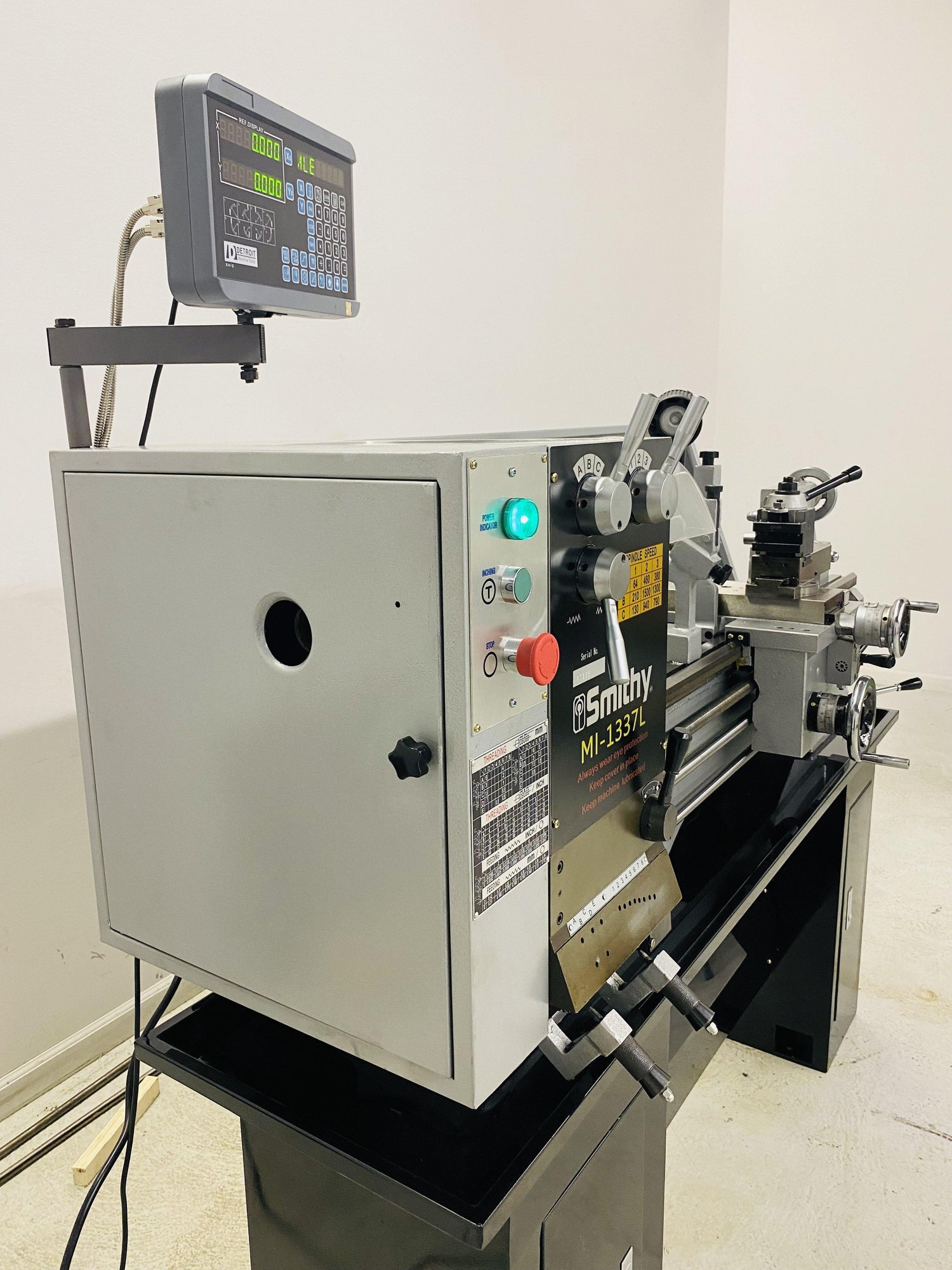

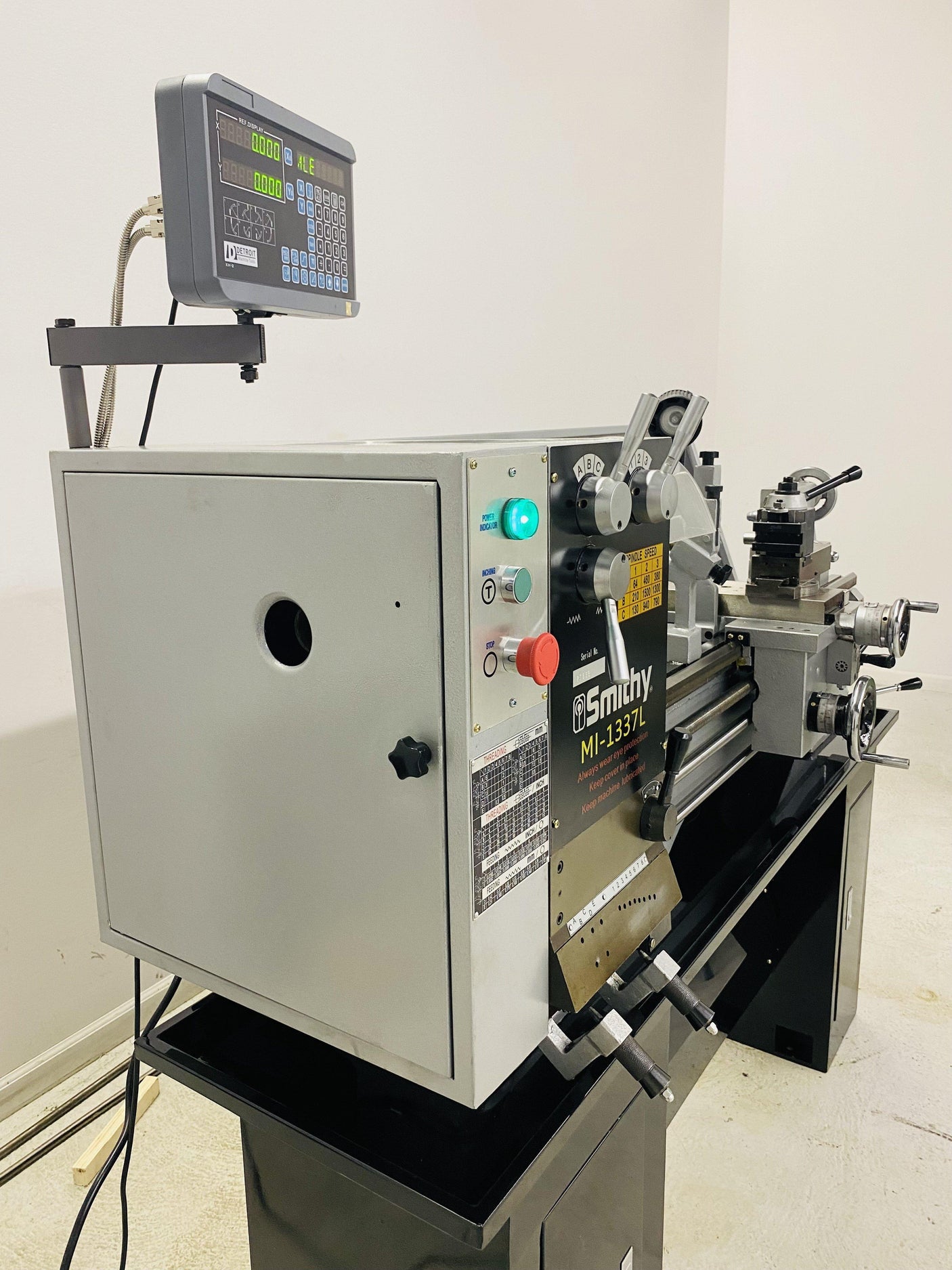

MI-1337L Bench Metal Lathe, 1.5 HP (110/220 Volt)

13” x 37” Lathe: Versatile bench metal lathe design with features that match the larger MI-1440L Lathe - but with the weight and footprint to match a garage or repair shop setting. Set up to use 110V or 220V power - makes it easy to get set up and making chips. Built for real lathe turning, even when you are on a budget. And, the MI-1337L still comes with Smithy level service and support.

Unique Features: 1) 110/220V Power;  Choose the voltage this fits your shop best. 2) Size and weight to match small shop settings  3) FREE machine stand.  4) Easy mount D1-4 Chuck  5) Heavy foundation for optimum vibration damping.

Used By: Home and repair shops are the biggest users of this bench metal lathe. Also, schools and small shop machinists have been relying on their Smithy bench metal lathe to keep them making and fixing parts - reliably and accurately, for nearly 30 years.  You don't need to be a machinist to get started turning parts.  You need to be curious.

Smithy Quality is Tops:  Smithy designs and builds some of the best machines.  We pay attention to details, all through the process.  Smithy is well-known for it's after sales service and two year warranty.  Each machine is inspected twice - before it leaves the factory and before it leaves our warehouse in Ann Arbor, MI to head your way.

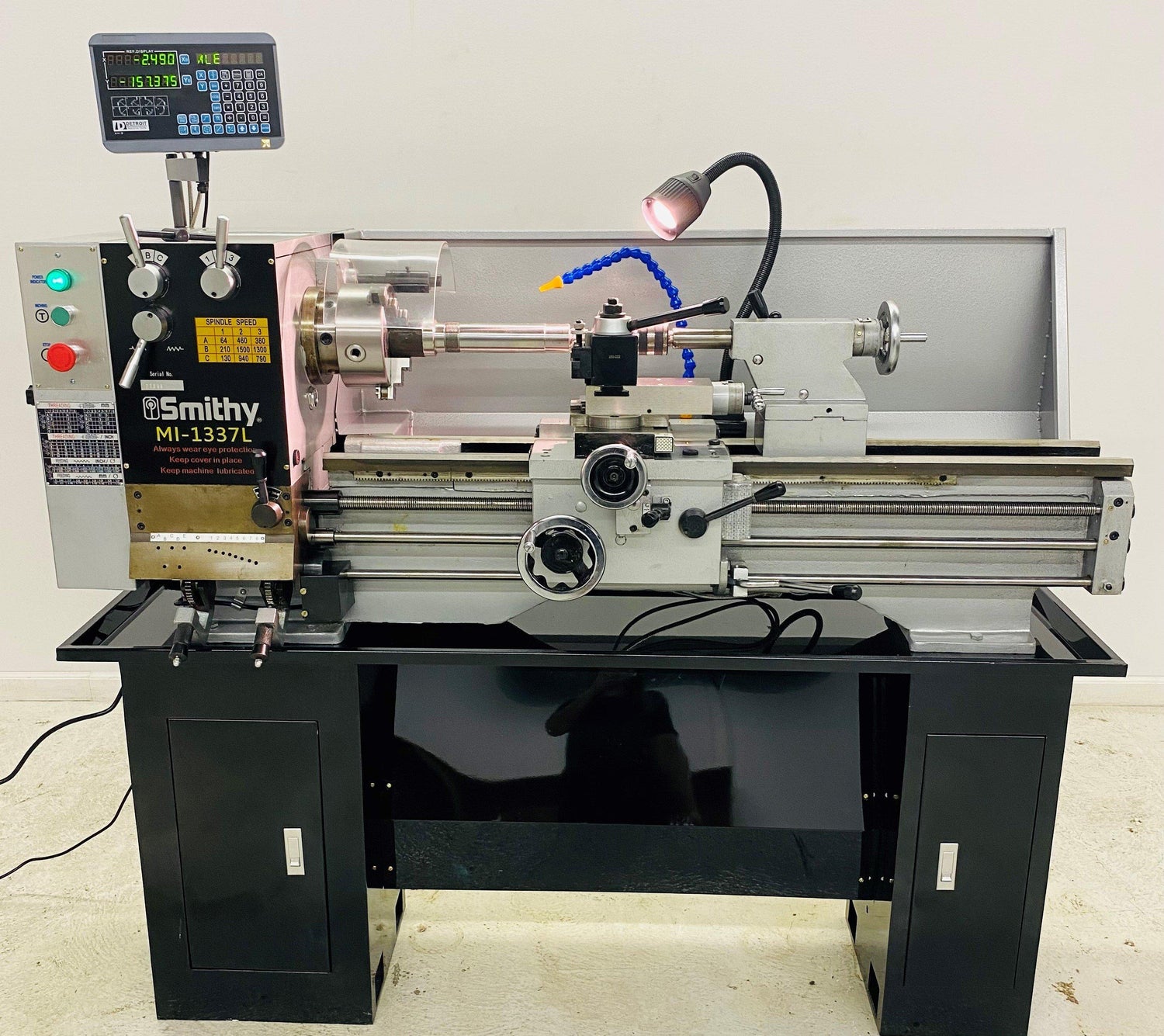

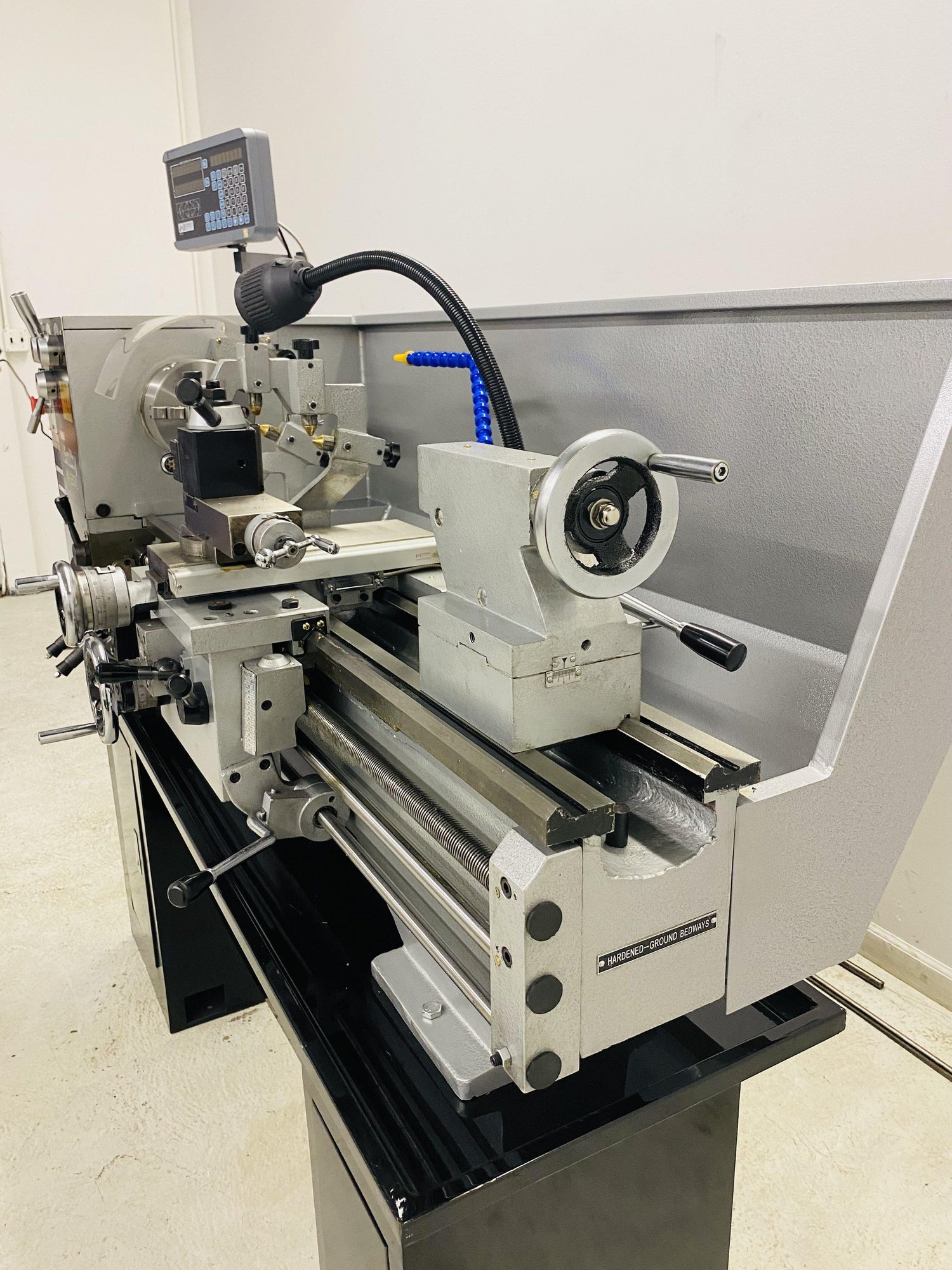

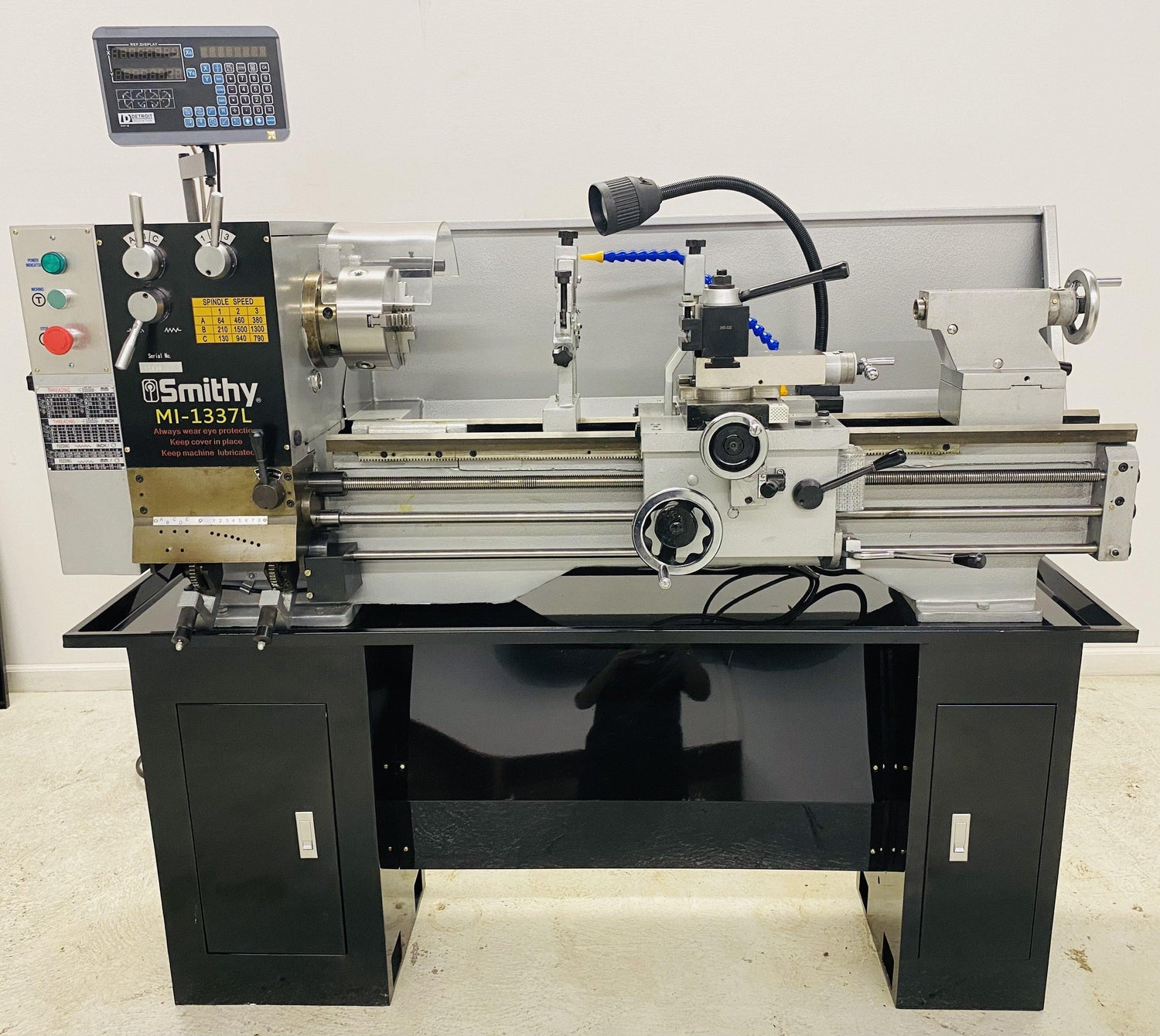

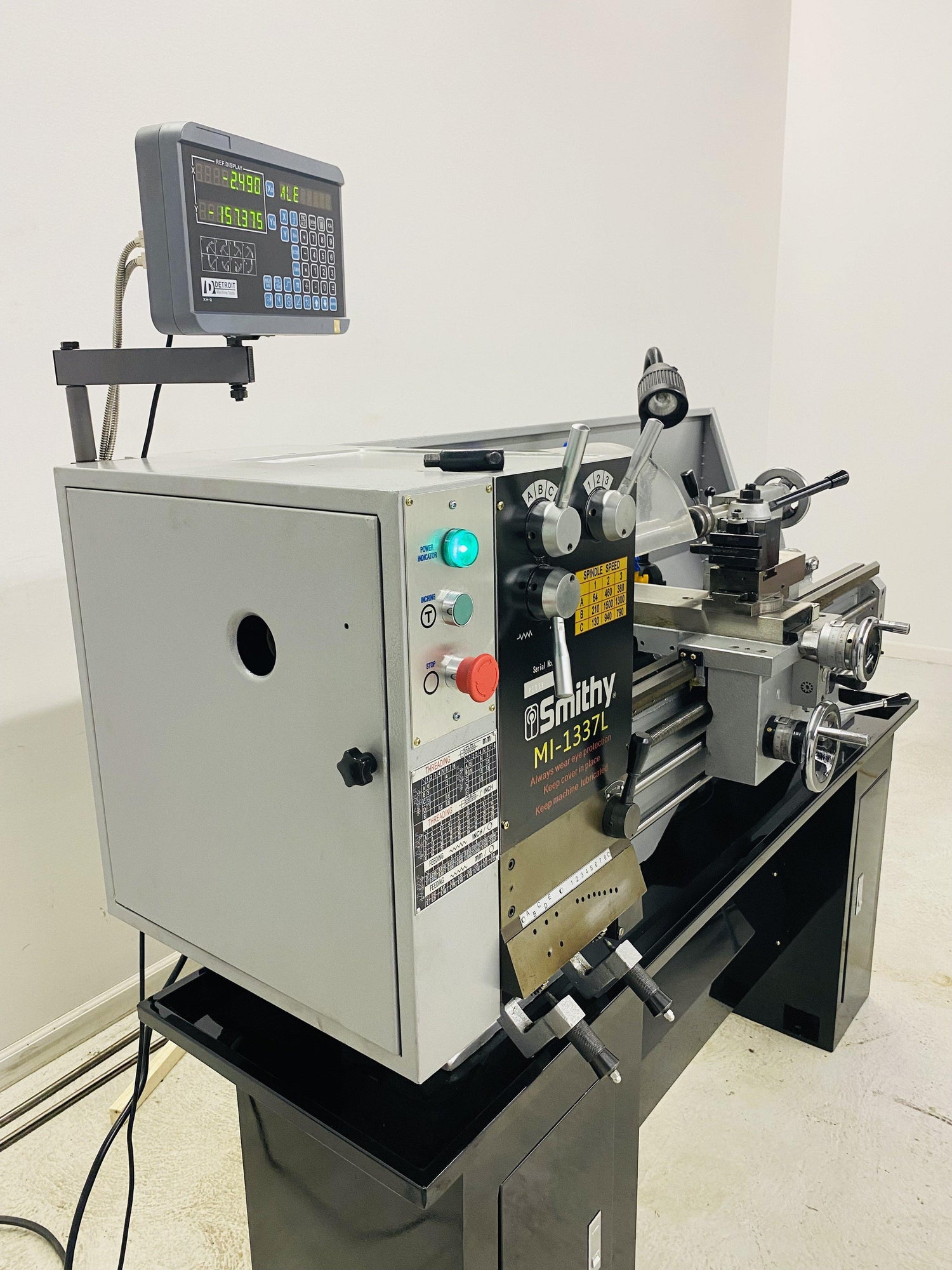

Smithy MI-1337L Bench Lathe

Medium Duty 13” x 37” Gear Head Lathe

Built-in durability and accuracy with heave cast base, precision V-ways, hand scraping and well-designed adjustable gibs. Versatility comes with generous turning capacity, industry standard cutting and clamping tools and gap bed. Ease of use because of powered feeds and speeds, quality dials and quality tool pack. Put this all together with Smithy level warranty and support and you have an industry best package.

Product Summary:

  • 1.5 HP - 110/220 Volt
  • Heavy - 860 lbs.
  • Includes: Machine Stand
  • D1-4 Chuck - Easy Changes
  • Power Lead and Cross Screws
  • Classic Norton Gear Box
  • Removable Gap - 17-1/4” Swing
  • Steady Rest/Follow Rest
  • Excellent FREE Tool Pack
  • See Features and Specs Tabs for More Product Details

Warranty Coverage:

  • 2 Years Parts Warranty


Heavy Cast Bed with Hardened Ways 800 lbs. of cast iron provides serious vibration damping. Induction hardened bed ways ensures resistance to wear.
Gear Drive Power Train Heavy cast gears put power directly to the spindle for maximum torque.

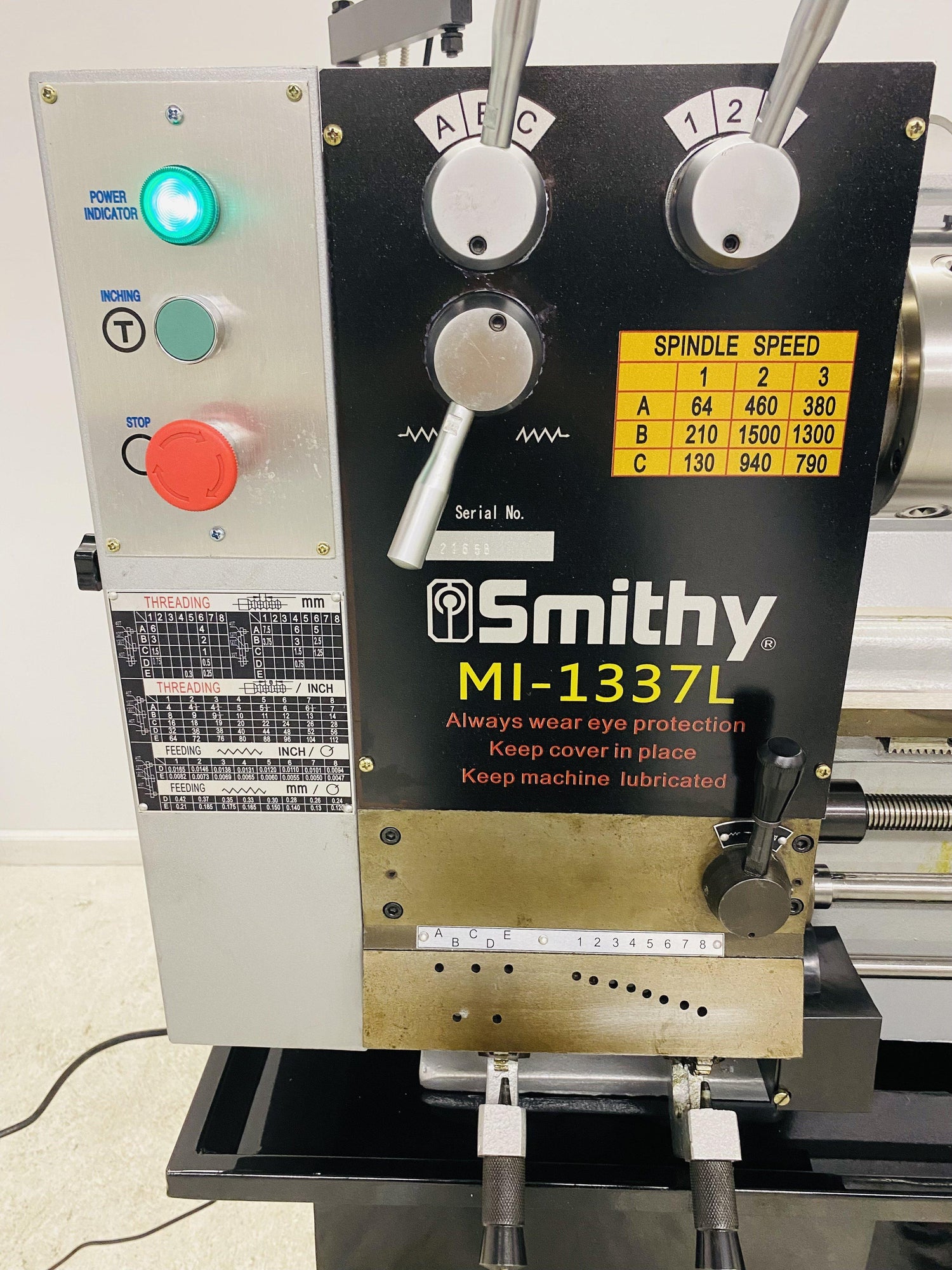

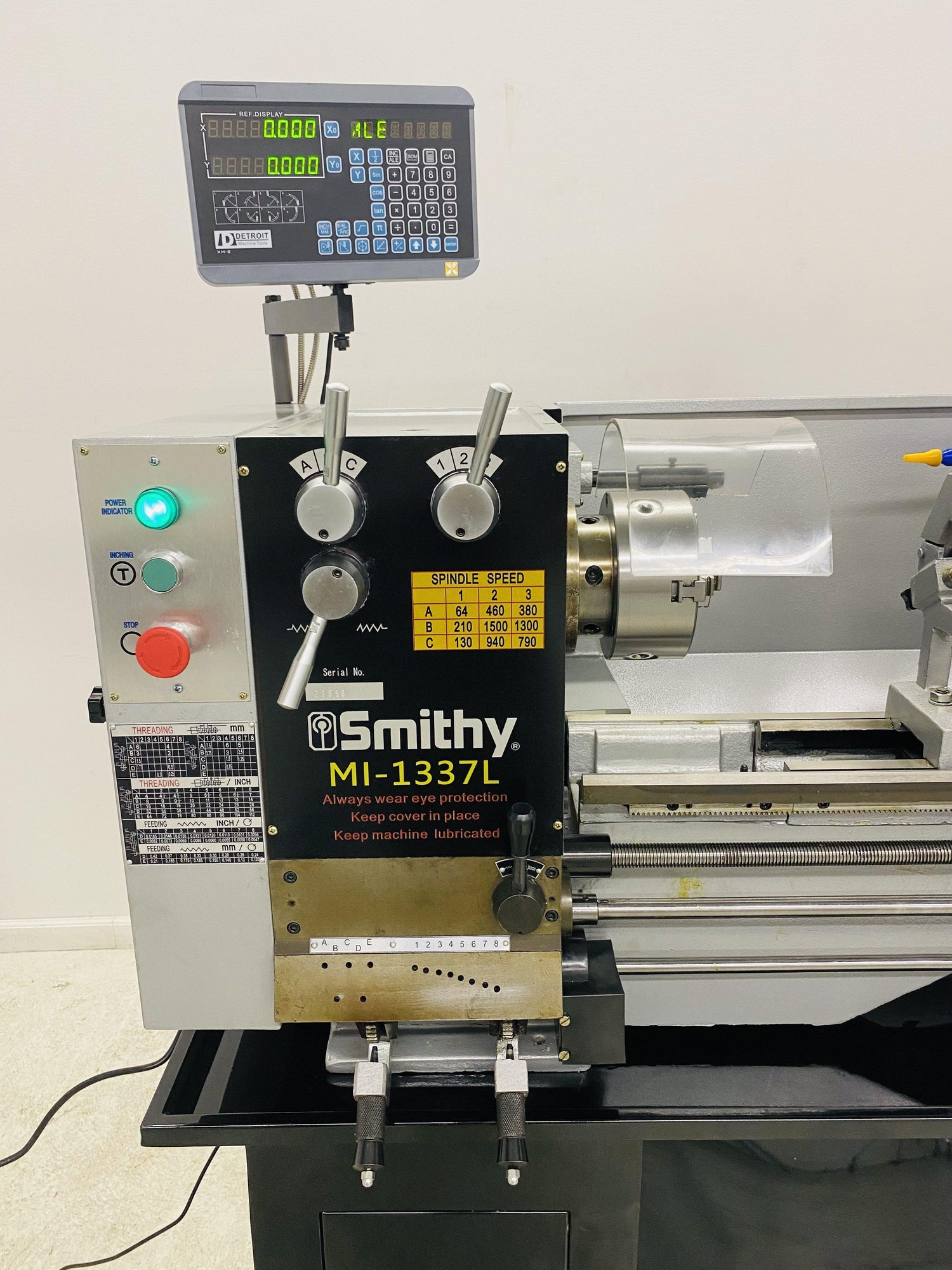

EZ Operate Spindle Control Neutral, forward and reverse are conveniently located on machine apron for operator convenience.

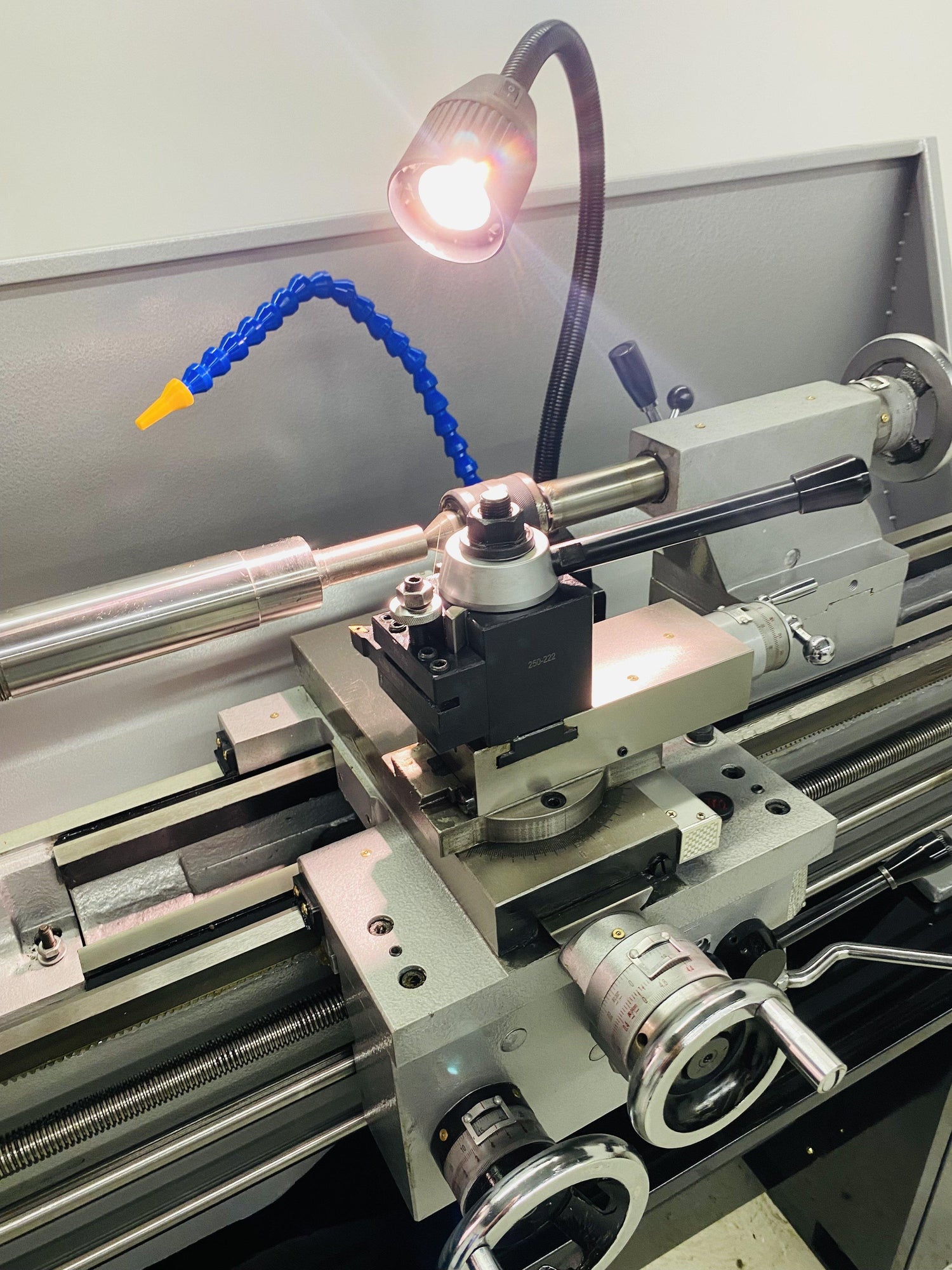

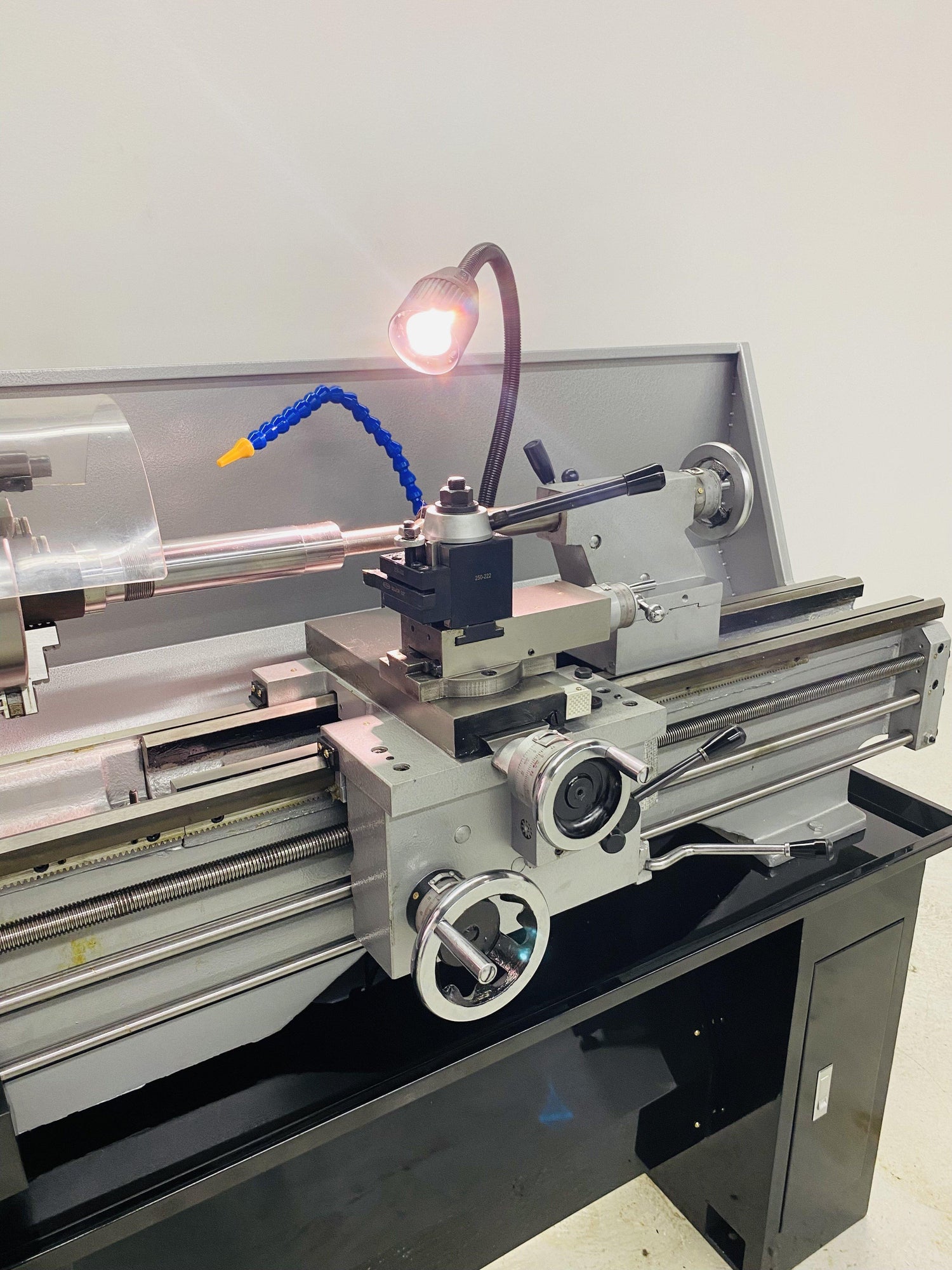

Power Feed on Lead Screw and Cross Feed Automatic feed beats manual feed for precision and smooth, accurate finishes.
Norton Style Gear Box 25 years of Smithy experience has shown the USA Standard Norton style gear box to be the most accurate gear box for inch machines. Proven to be superior for maintenance, durability, and ease of use.
Hardened & Ground Ways

Having hardened and ground ways assures many extra years performance at higher accuracies.

Removable Gap Bed Removing the gap plug allows you to turn work pieces up to 17-1/4” in diameter.

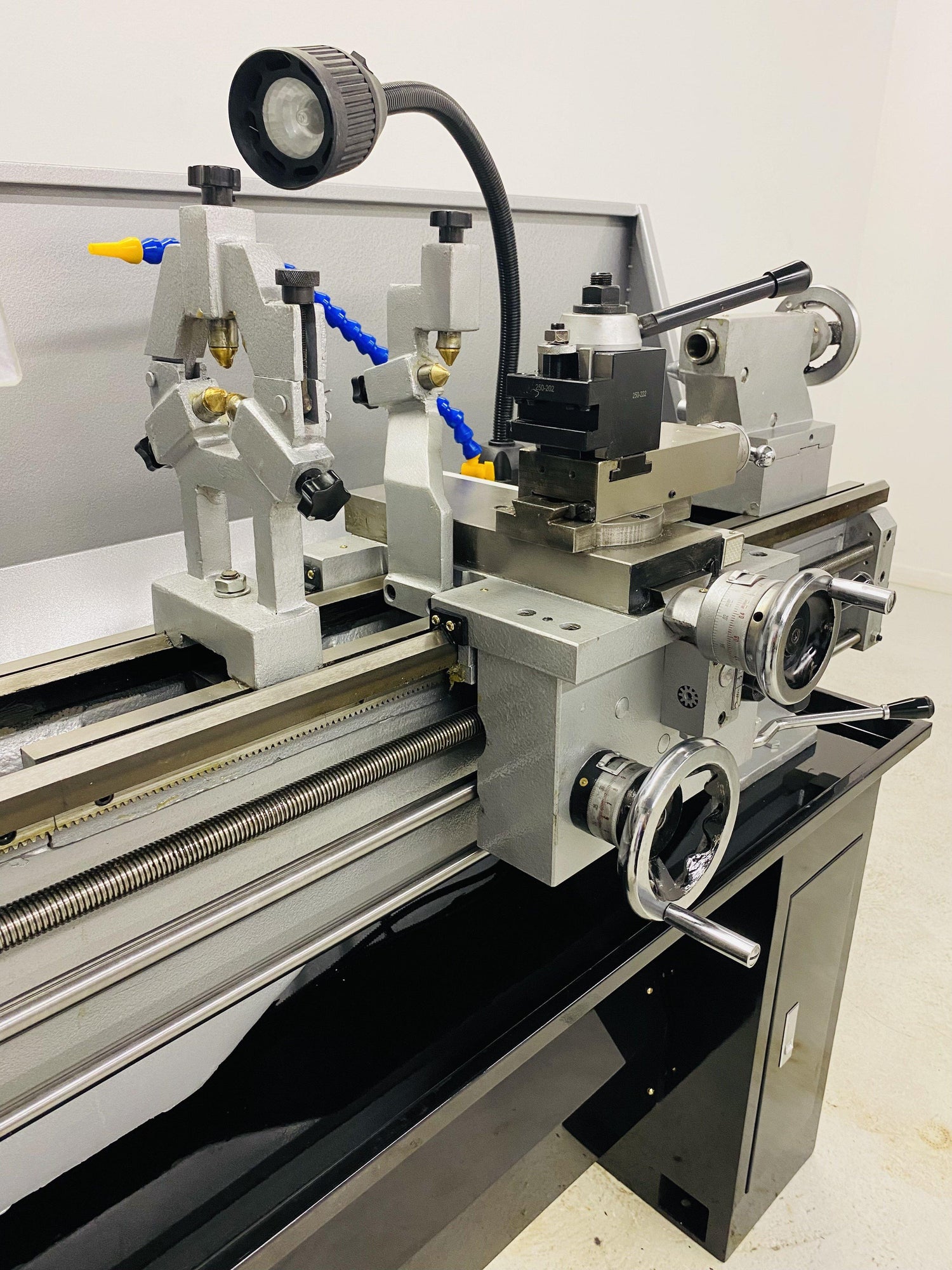

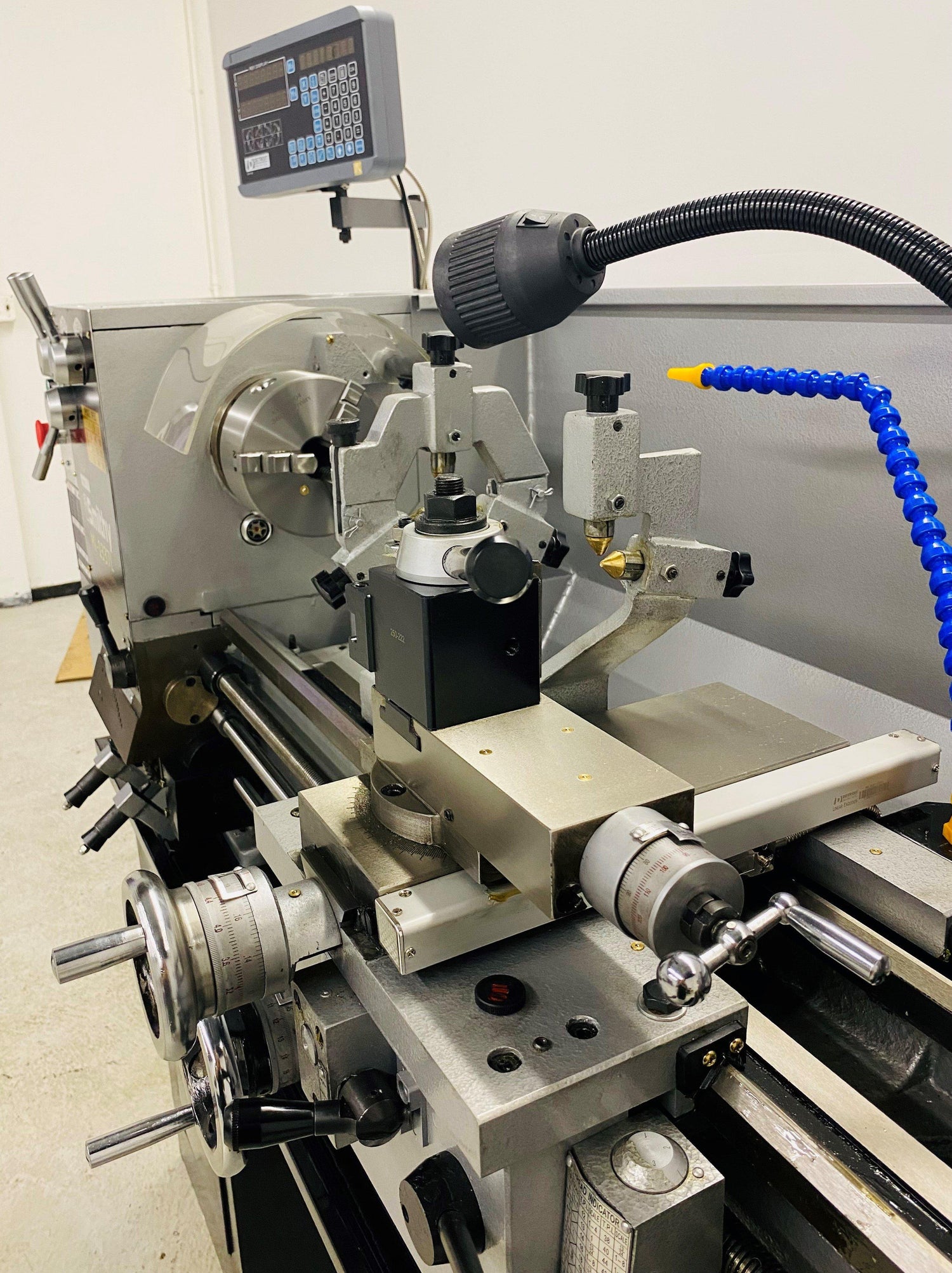

Steady Rest and Follow Rest An important accessory for supporting long, flexible work pieces.
Large Spindle Bore Allows up to 1.47” work pieces through the headstock. Great for gunsmiths and auto.
Offset Tailstock Manual offset and lockdown allows for cutting angled tapers.
Threading Dial and Half Nut Makes for easy, accurate thread cutting operations.
Cutting Threads Right hand and left hand threads. Also inch and metric. Had change gears for metric thread cutting.
6” 3-Jaw Chuck Includes two sets of jaws - inside and outside. D1-4 black plate is installed on the chuck.
8” 4-Jaw Chuck Heavy and solid for working with interrupted cuts. Reversible jaws able to grip work pieces in multiple configurations. D1-4 back plate is installed on the chuck.
12” Face Plate Plenty of room for mounting unique work pieces - use with lathe dogs as a drive plate.

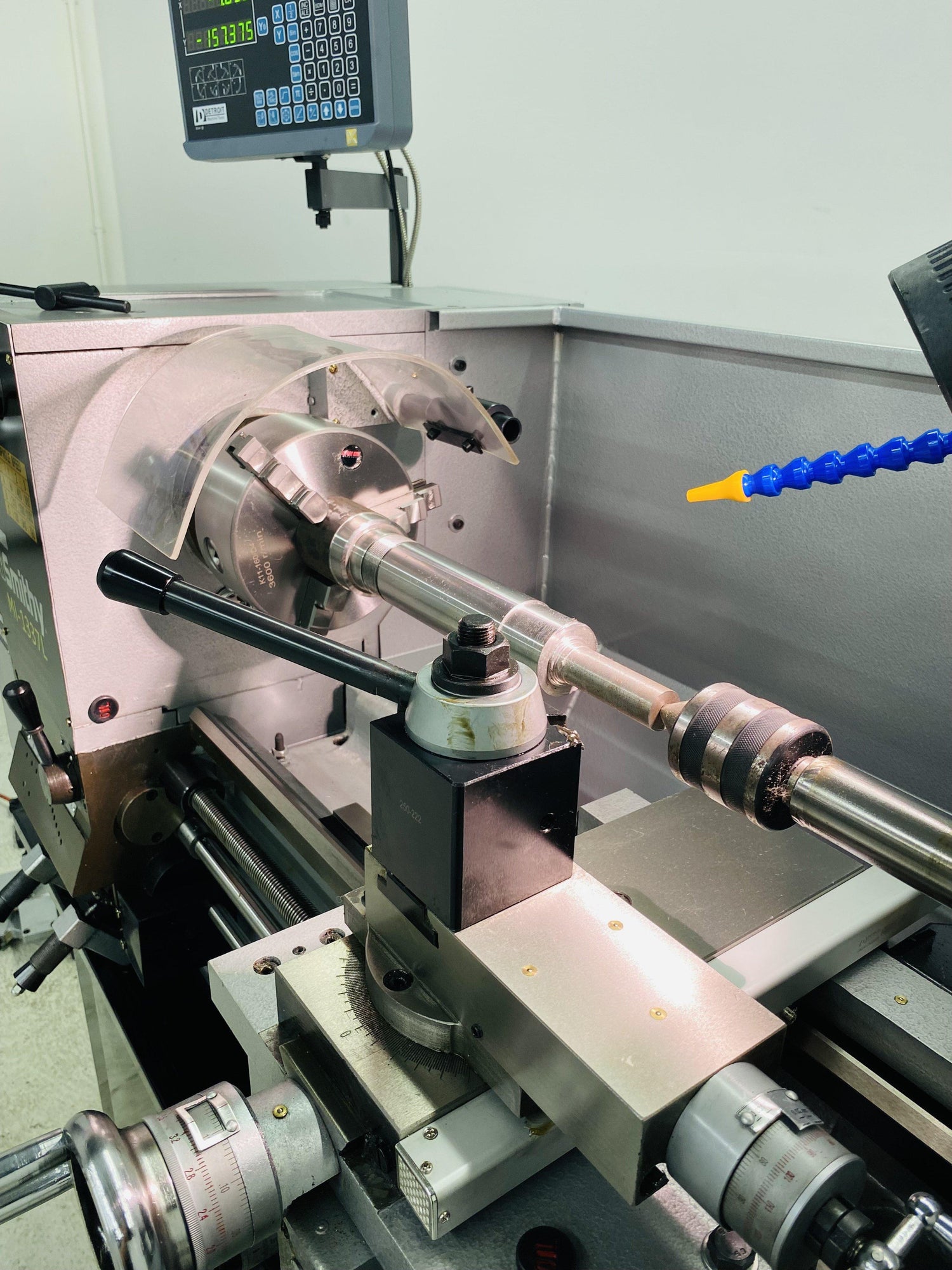

Chuck Guard Includes OSHA required and approved lathe chuck guard.



Model MI-1337L MI-1440L
Spindle Bore 1.5" 2"
Motor Size 1.5 HP 2 HP
Electrical Requirements 110 VAC or 220 VAC (Convertible) 110 VAC or 220 VAC (Convertible)
Amperage 9 Amps @ 220 Volt / 18 Amps & 110 Volts 9 Amps @ 220 Volt / 18 Amps @ 110 Volts
Chuck Size (3 And 4 Jaw) 6" 3-Jaw and 8" 4-Jaw 8" 3-Jaw and 8" 4-Jaw (2" Chuck Bore on both)
Chuck Mounting Industrial Standard "D1-4" Industrial Standard "D1-5"
Swing Over Bed 12.75" 13.75"
Swing Over Carriage 6.5" 8.75"
Swing With Gap Section Removed 17.25" 19.68"
Distance Between Centers 37" 40"
Headstock, Gearbox, & Apron Lubrication Oil Bath with Reservoir and Site Gauge Oil Bath with Reservoir and Site Gauge
Handles, Hand Wheels & Levers Metal Construction, No Plastic Metal Construction, No Plastic
Work Light Standard Standard
Stand With Drip Pan & Splash Shield Standard Standard
Spindle Guard Standard Standard


Model MI-1337L MI-1440L
Power Requirements 110V/220VAC, Single Phase (Convertible) 110V/220VAC, Single Phase (Convertible)
Connection Type Plug & Cord Plug & Cord
Plug 6-15P 220 Volt (supplied), 5-15P 110 Volt (not supplied) 6-15P 220 Volt (supplied), 5-15P 110 Volt (not supplied)
Outlet 5-15R for 110 VAC, 6-15R for 220 VAC 5-15R for 110 VAC, 6-15R for 220 VAC
Motor Type Induction Type A/C Induction Type A/C
Motor Power 1.5 HP 2 HP
Motor Amp Draw 18 Amps @ 110 VAC / 9 Amps @ 220 VAC 18 Amps @ 110 VAC / 9 Amps @ 220 VAC


Model MI-1337L MI-1440L
Spindle Speed Control Mechanical Mechanical
Number Of Speeds 9 8
Available Speed 64, 130, 210, 380, 460, 790, 940, 1300, 1500 84, 140, 230, 360, 430, 700, 1150, 1850
Longitudinal Travel 32" 33"
Cross Travel 6.0" 6.3"
Compound Travel 3.3" 2.76"
Tailstock Barrel Travel 3.74" 3.74"
Tailstock Taper MT3 MT3
Distance Between Centers 37" 40"
Swing Over Carriage 6.5" 8.75"
Swing Over Bed 12.75" 13.75"
Swing Over Removable Gap 17.25" 19.68"
Spindle And Chuck Bore Diameter 1.50" 2.00"
Spindle Nose Taper MT5 MT6
Spindle Nose D1-4 D1-5
3-Jaw Chuck Diameter 6" 8"
4-Jaw Chuck Diameter 8" 8"
Feed Screw Pitch 8 TPI 8 TPI
Longitudinal Feed Rates 0.0047”-0.1316”/ rev 0.002”-0.0548”/ rev
Cross Feed Rates 0.0016”-0.0448”/rev 0.0007”-0.187”/rev
Number Of Inch Threads 40 34
Inch Thread Pitches 4 to 56 TPI 4 to 112 TPI
Number Of Metric Threads 26 26
Metric Thread Pitches .025 to 7.5mm .04 to 7.0mm
Tool Size 1/2” or 5/8” 1/2” or 5/8”


Model MI-1337L MI-1440L
Machine Weight 860 lbs 1114 lbs
Machine Size 22" W x 25" H x 64" L 26" W x 26" H x 70" L
Shipping Weight 970 lbs 1245 lbs
Shipping Crate Size 30" W x 36" H x 70" L 30” W x 36" H x 76" L
Shipping Crate Material Wood Wood


Who buys these Smithy lathes?

Schools purchase quite a few. Military organizations, R & D labs, and small machine shop/production shops are frequent buyers. The machines are designed and built to be good enough to use in parts production settings - the reality is that, because the price is so reasonable, these lathes are popular for the home shop buyer.

Is the tool pack helpful?

The FREE tool pack is intended to give you a basic tool set-up to get you started when you get the machine. It’s a balanced set of tooling, but you will likely need more tooling once you figure out specific projects you want to do.

What do you mean by “Inspected Twice?”

Each lathe is inspected by trained company employees at the factory - PLUS, a second complete inspection is performed at our warehouse in Ann Arbor, MI before it is sent to the customer.

Why are these lathes better than others on the market?

For a machine tool to be truly great it must have attention paid to every step of its development - design, production, quality control, testing, and after sales support. Other benchtop lathes you'll find typically don't have this level of quality committed to every step like these MIDAS lathes.

How long have you been selling these lathes?

Almost 30 years.

Do many lathe buyers also purchase milling machines?

Yes, the MI-1337L lathe matches well with the MI-329MZ milling machine - a machine shop combo that was built to last. Many customers buy this combination.

Why Should I buy a Smithy Lathe?

  • Rugged Design
  • Quality Built-In
  • Inspected Twice
  • Best Service, Warranty & Support

The best gear drive lathe value - for over 25 years!

Do I need to be a machinist to use the machine?

Many buyers of these lathes don’t have machining/turning experience - what they have is the need to make parts. Usually they already have something in mind they need to make. What is needed is a commitment to learn and curiosity. It will take time, but you will figure it out. We have a set of machining training videos on our website - you can usually find classes at a local community college or vo-tech school. Get a machine and get going! You won’t be disappointed.
