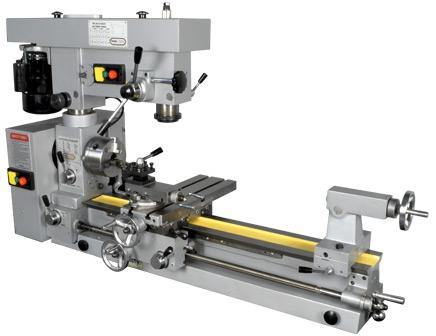

MI-1220 LTD Lathe Mill Combo

$3,344.00 $2,949.00

GUARANTEED SAFE CHECKOUT

safe checkout

Fewer Features than Granite - But it Will Get the Job Done

Do more than you thought was possible!

Smithy started the 3-in-1 craze back in the mid-1980's with the Midas. The Midas line remains as strong as ever. The all-in-one solution for individuals and companies that smaller shops and budgets. Midas owners typically do a moderate amount of machining and can forgo some "bells and whistles," but demand Smithy QUALITY and SERVICE!

Midas Machine Features:

  • Precision - Repeatability to the 0.0015"
  • Large Work Table - Larger work pieces
  • Thread Cutting - Right hand, left hand, and metric
  • Power Feeds - On LTD model
  • Larger Spindle Bore - Up to 1" bar stock

Features

Specs

GENERAL SPECIFICATIONS

Model Name MIDAS 1220 LTD MIDAS 1230 LTD
Shipping Weight 620 lbs 658 lbs
Machine Weight 507 lbs 567 lbs
Crate Size 45" x 22" x 38" 57" x 22" x 38"
Work Area Requirements 36" x 62" 36" x 72"
Length 43.5" 55.5"
Width 20" 20"
Height 34" 34"
Footprint 18" x 37" 18" x 47"
T-Slot Size 7/16" 7/16"
Powerfeed (X-Axis) Yes Yes
Powerfeed (Y-Axis) Yes Yes
Powerfeed (Z-Axis) No No
Threading Dial Yes Yes
Table Size 5-7/8" x 16-3/4" 5-7/8" x 16-3/4"

ELECTRICAL SPECIFICATIONS

Model MIDAS 1220 LTD MIDAS 1230 LTD
Ampherage 11 (Lathe & Mill) 11 (Lathe & Mill)
Horsepower 3/4 (Lathe & Mill) 3/4 (Lathe & Mill)
Motor Type AC AC
Phase Single Single
Voltage 110 A/C 110 A/C
Frequency 50/60 Hz 50/60 Hz

LATHE SPECIFICATIONS

Model MIDAS 1220 LTD MIDAS 1230 LTD
Distance Between Centers 20" 30"
Dial Calibration Leadscrew .002" .002"
Dial Calibration Longfeed Rack .02" .02"
Dial Calibration Crossfeed .002" .002"
Dial Calibration Tailstock .002" .002"
Dial Calibration On Toolpost .002" .002"
Feed Rate (X-Axis) .0022-.040 .0022-.040
Feed Rate (Y-Axis) .0011-.020 .0011-.020
Headstock Taper MT4 MT4
Lathe Chuck Bore 1.03 1.03
Lathe Chuck Diameter 1.17" 1.17"
Lathe Chuck - Max. Diam/W/P 5" 5"
Lathe Chuck - Min. Diam/W/P 1/8" 1/8"
Lathe Chuck Mount Bolt-On Bolt-On

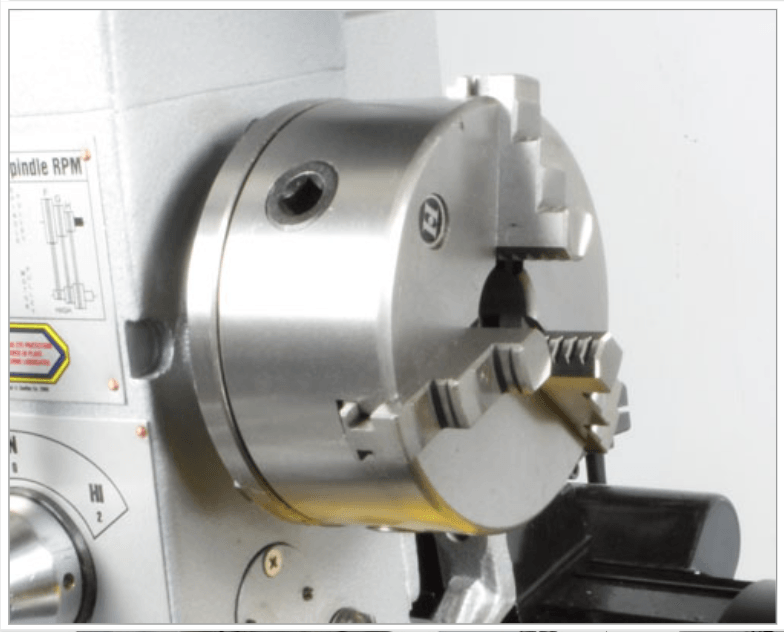

Lathe Chuck Type 3-Jaw Self Centering 3-Jaw Self Centering
Spindle Bore 1.03" 1.03"

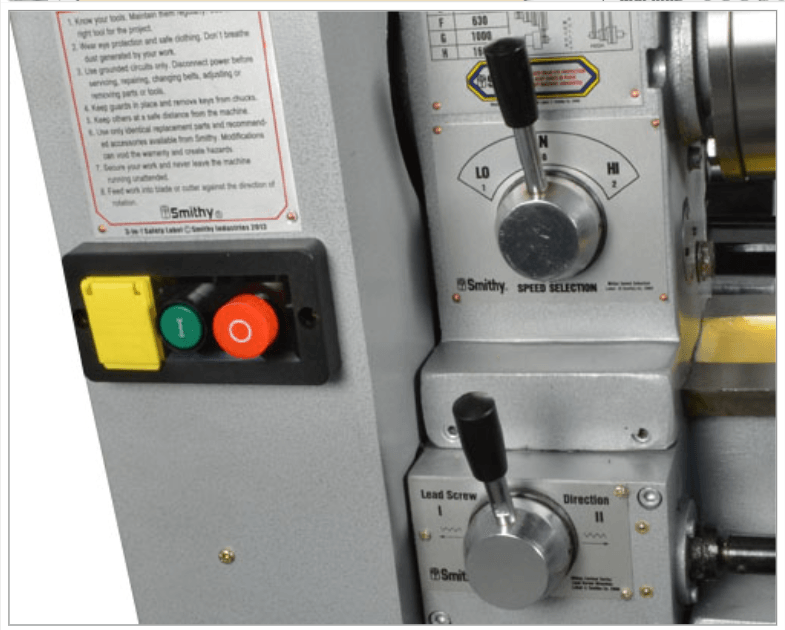

Spindle Speeds Six (160-1600 RPM) Six (160-1600 RPM)
Spindle Accuracy TIR 0.0016" 0.0016"
Swing Over Bed 12" 12"
Swing Over Worktable 6-3/4" 6-3/4"

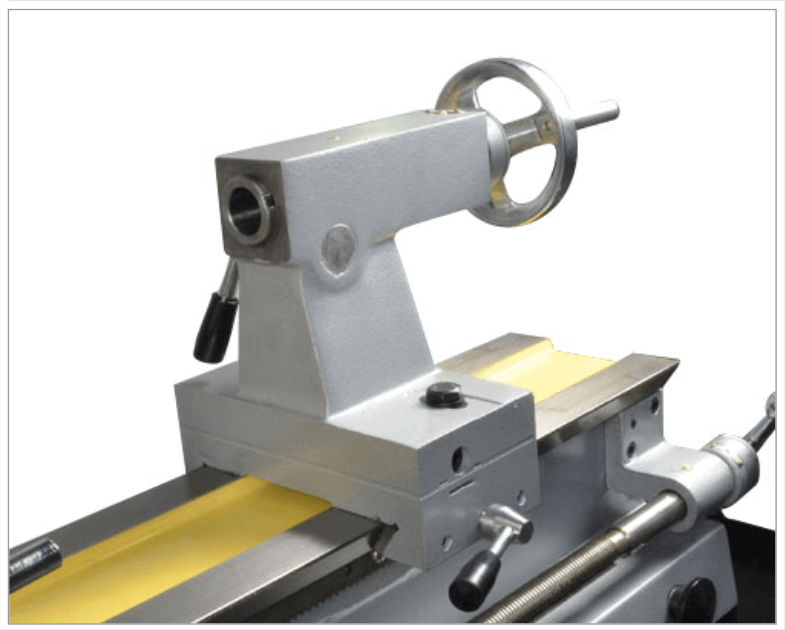

Tailstock Offset 19/32" 19/32"
Tailstock Taper MT3 MT3
Tailstock Barrel Travel 2" 2"
Threads (Metric) 0.5 to 4 mm 0.5 to 4 mm
Threads (Inch) SAE 6-120 TPI SAE 6-120 TPI
Toolpost Travel 3-1/4" 3-1/4"
Toolbit Size 1/2" 1/2"
X-Axis Travel W/O Tailstock Or Threading Dial 14.75" 25"
Y-Axis Travel 7-3/8" 7-3/8"

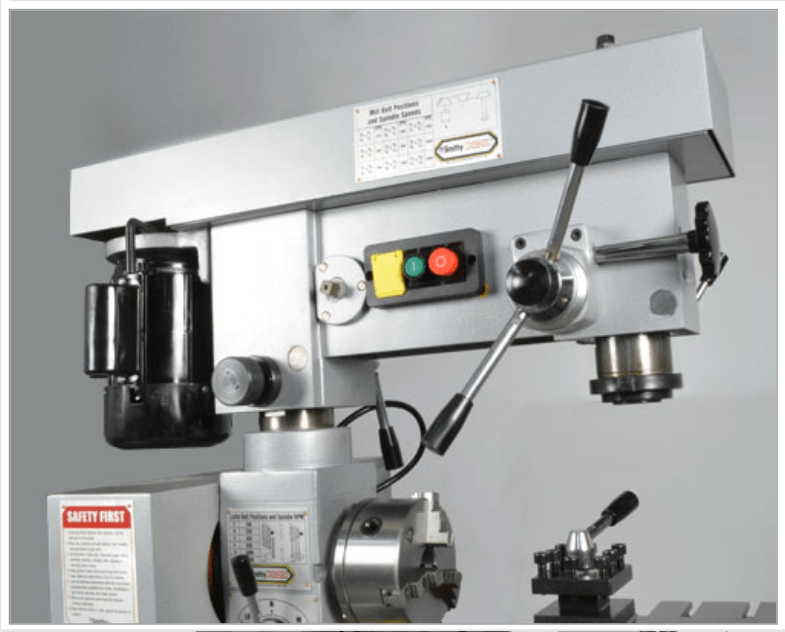

MILL/DRILL SPECIFICATIONS

Model MIDAS 1220 LTD MIDAS 1230 LTD
Column Diameter 3-1/8" 3-1/8"
Dial Calibration Drill-Coarse Feed 0.042" 0.042"
Dial Calibration Mill-Fine Feed 0.042" 0.042"
Dial Calibration Millhead Up/Dw Crank N/A N/A
Drawbars Size (Included) 12mm, 3/8" 12mm, 3/8"
Drill Chuck Size 1/2" 1/2"
Drill Chuck Arbor MT3/JT33 MT3/JT33
Feed Rate (X-Axis) NA NA
Feed Rate (Y-Axis) NA NA
Head Rotation 360° 360°
Head Travel Z-Axis 3-5/16" 3-1/4"
Quill Diameter 2-3/4" 2-3/4"
Quill Travel 3-5/8" 3-5/8"
Spindle Center To Front Of Chuck 8-3/4" 8-3/4"
Spindle Center To Lathe Spindle Flange 11" 11"
Spindle Center To Column 12-1/8" 12-1/8"
Spindle To Table Distance (Min.-Max.) 6-1/2"-13" 6-1/4"-13"
Spindle Speeds 9 (315-2000 RPM) 9 (315-2000 RPM)
Spindle Taper MT3 MT3
Tool Size Limit 1" 1"
X-Axis Travel 12-1/4" 22-1/16"
Y-Axis Travel 8-1/2" 8-1/2"
